2R SERIES

2 DIES THREAD ROLLING MACHINE WITH GUIDE
K-40
Other
HK-3
Click for Technical Video
Technicial Specifications

  • Rolling Force

    (kN)10 - 500 kN

  • Speed Range

    (RPM)17-53

  • Min. Max. Tool Dia.

    (mm)Ø160 - Ø210 mm

  • Die Spindle Dia.

    (mm)Ø80 - Ø70 op - Ø69,85 op

  • Max. Die Length

    (mm)230 mm

  • Workpiece Dia.

    (mm)Ø4 – Ø120 mm

  • Max. Pitch

    (mm)7 mm

  • Swivel Angle

     ±11°°

  • Main Motor

    (KW)30 kW

  • Total Power

    (KW)42 kW

  • Weight

    (kg)5000 kg
ADDITIONAL OPTIONS:

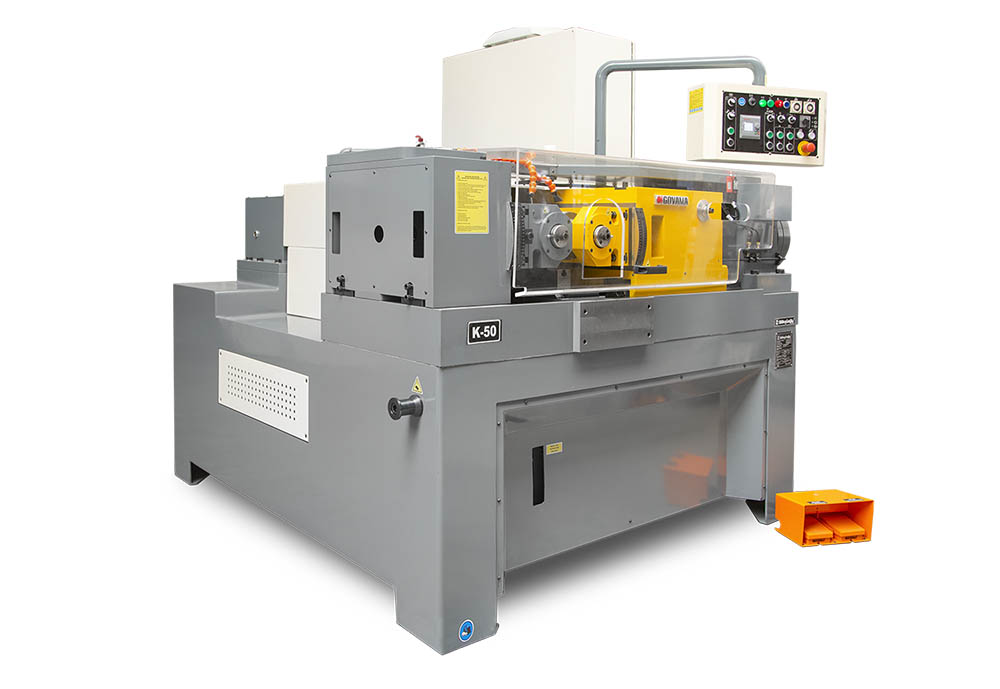

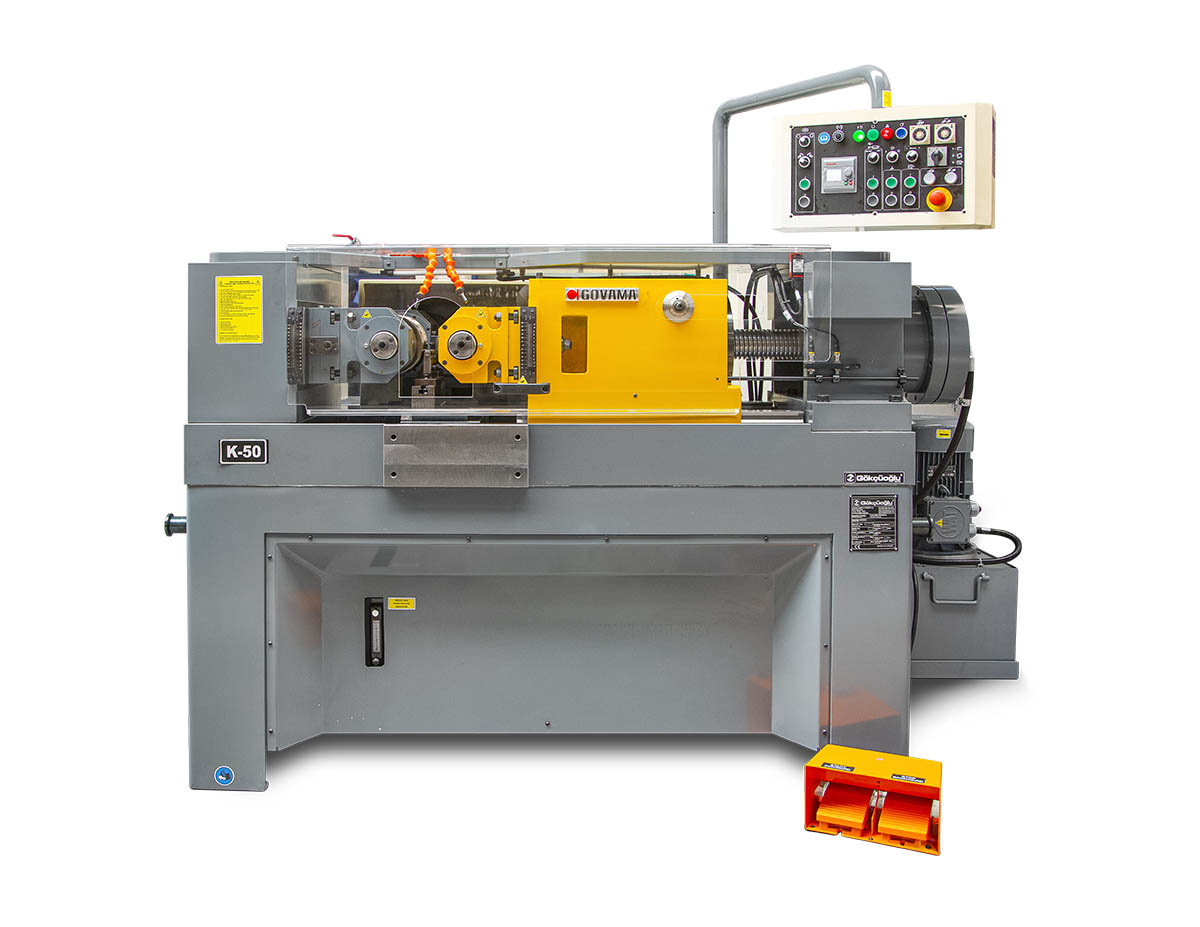

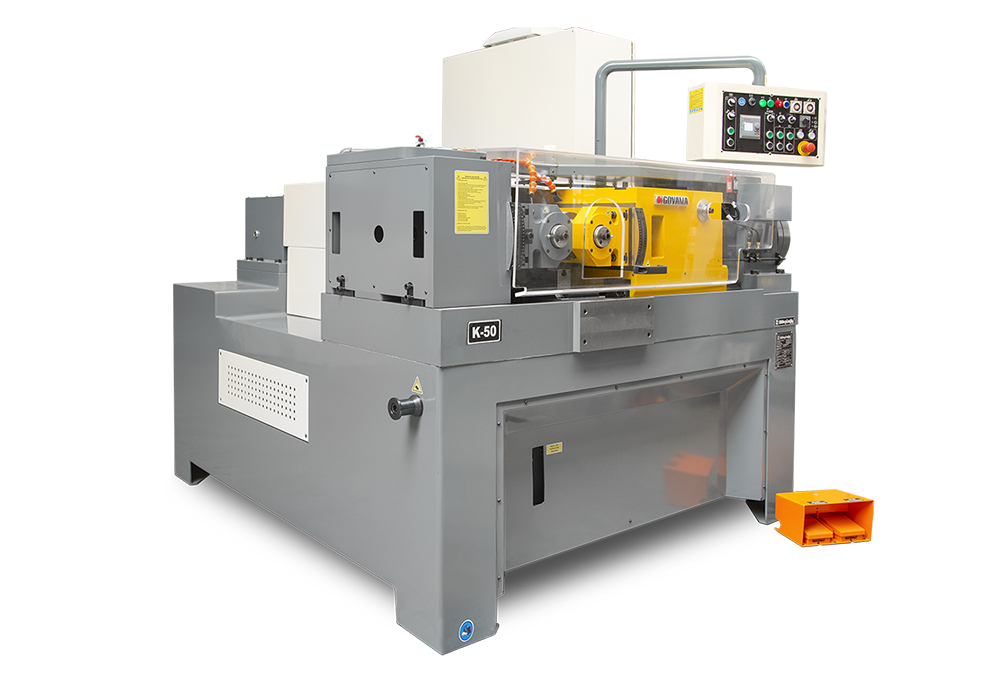

K-50 K-50
