2R SERIES

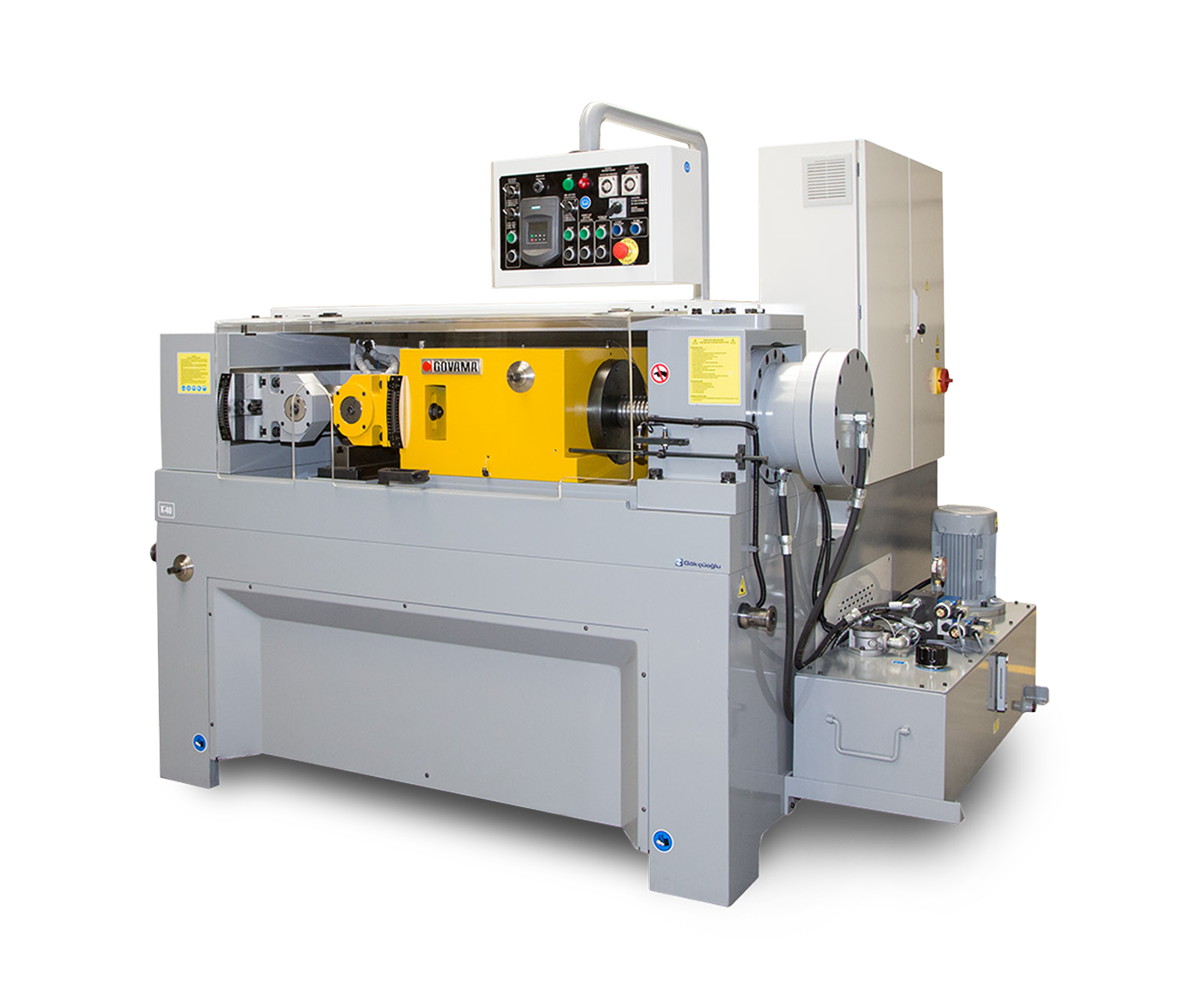

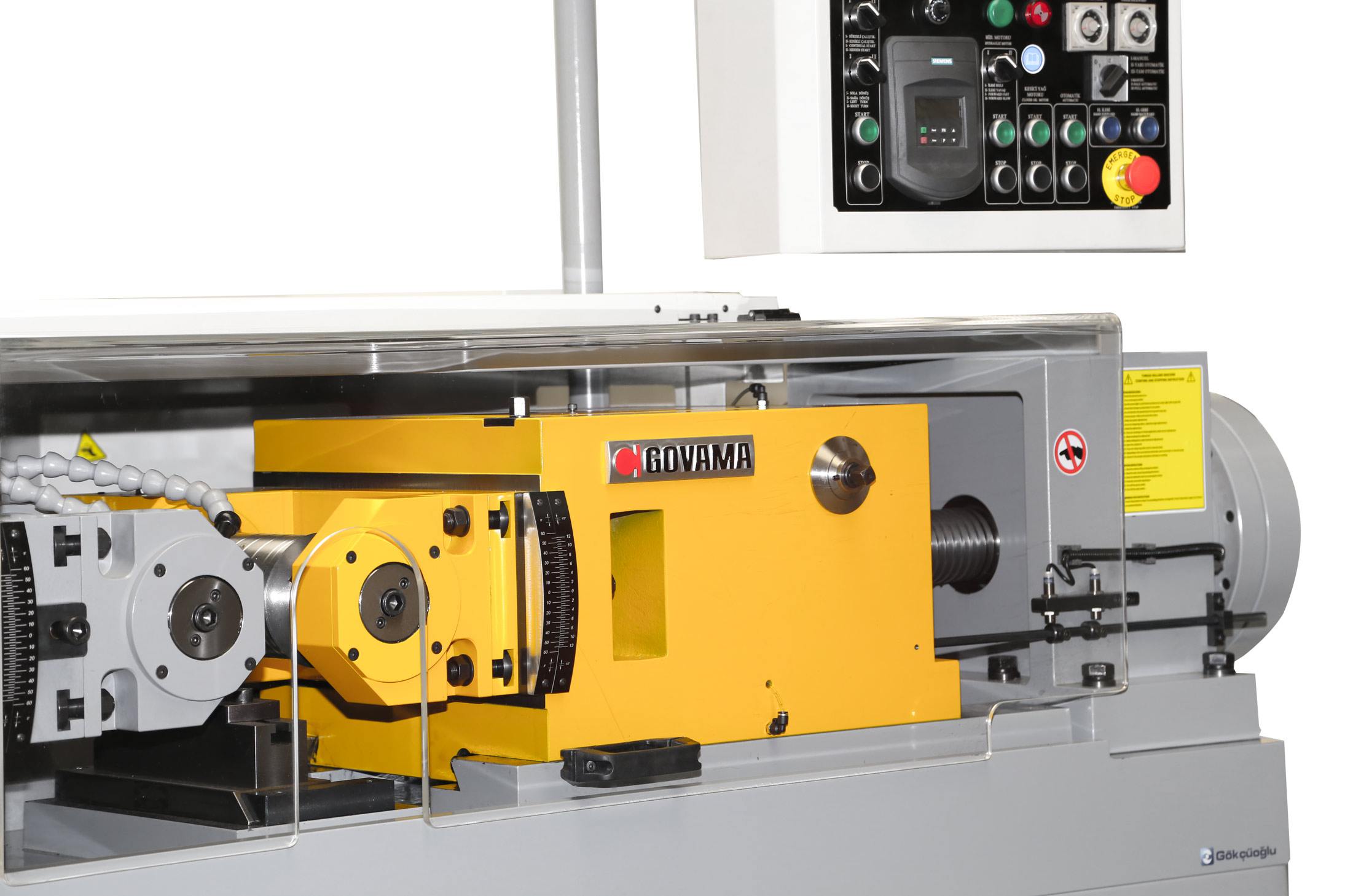

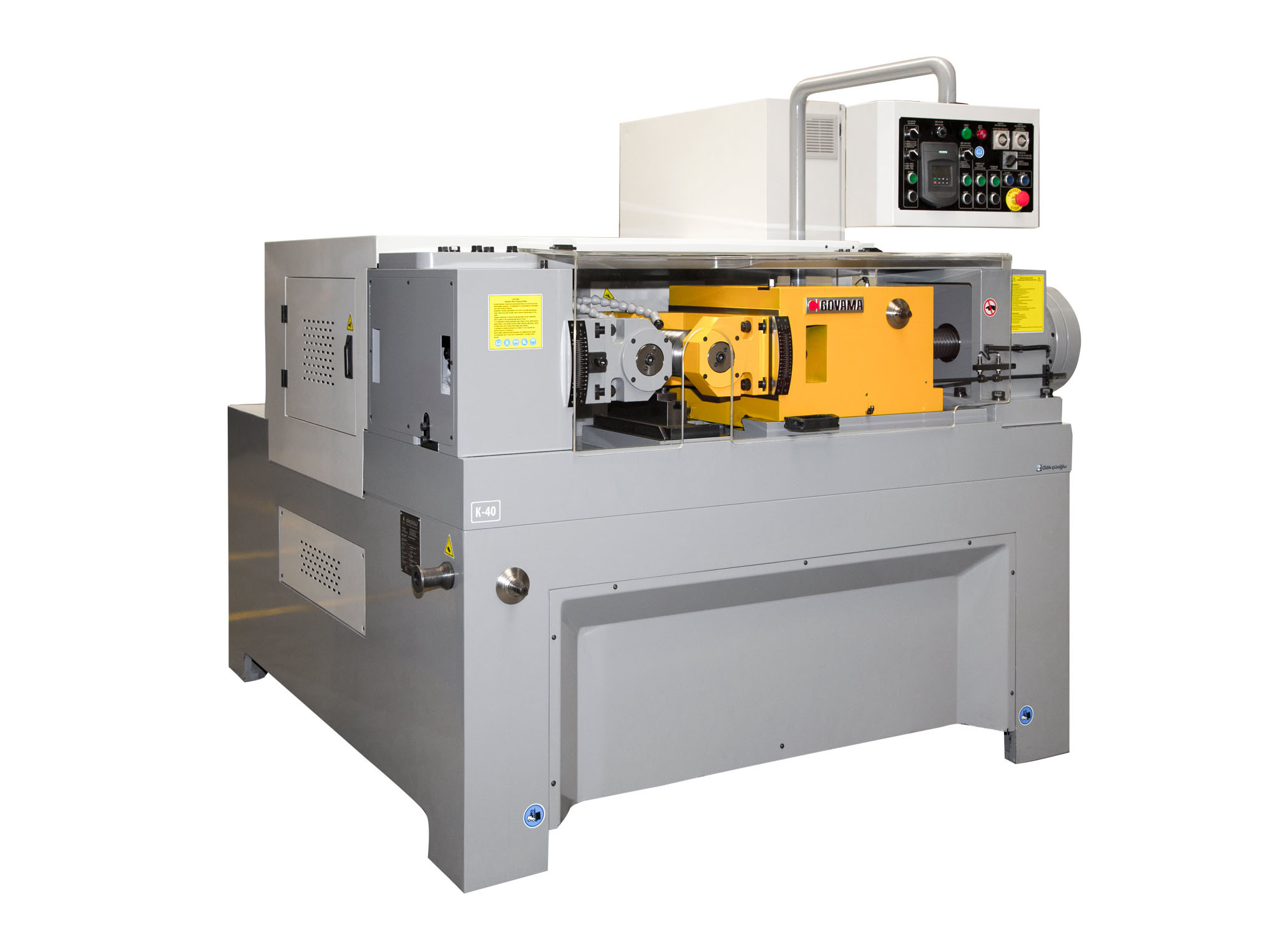

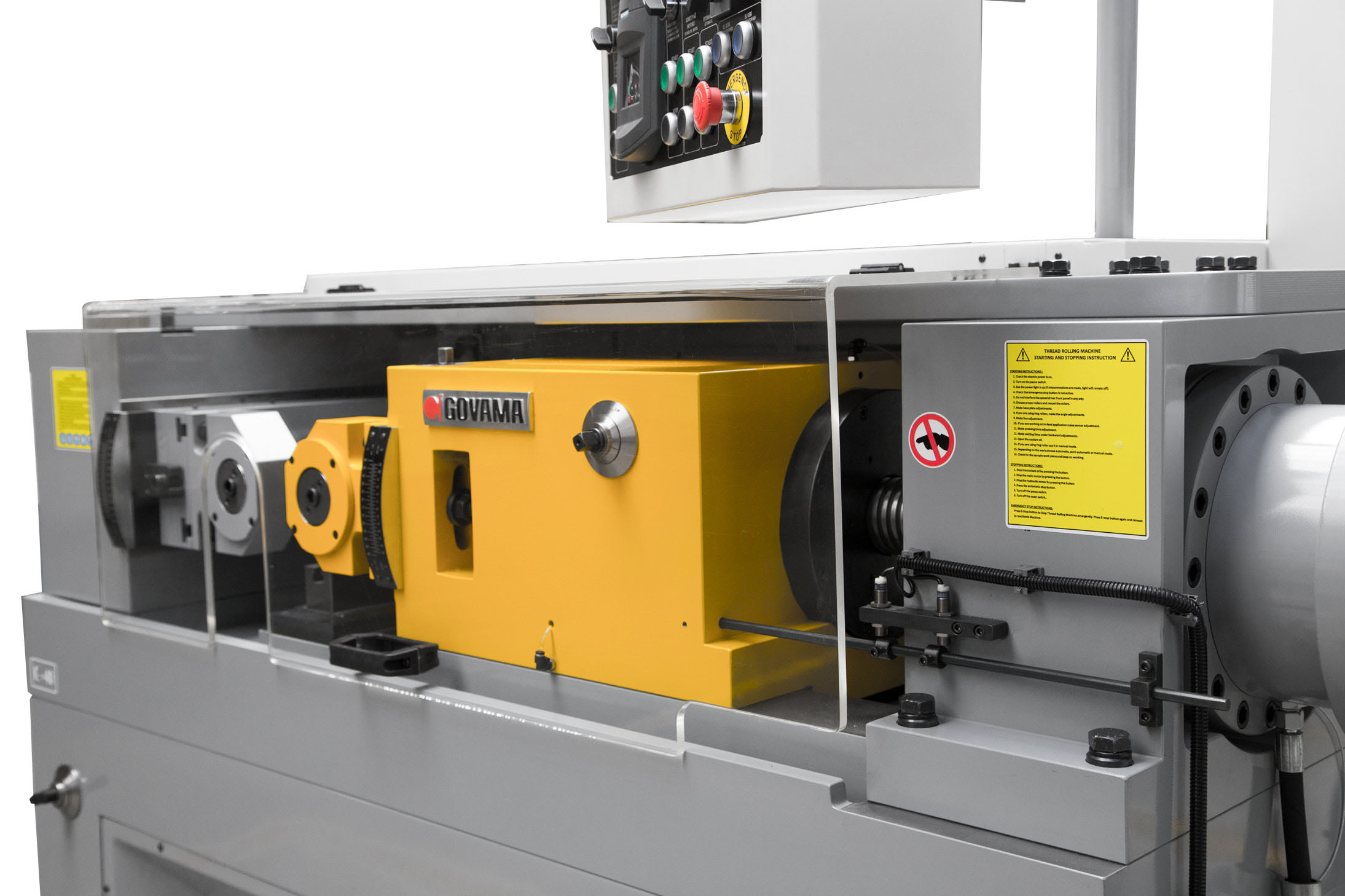

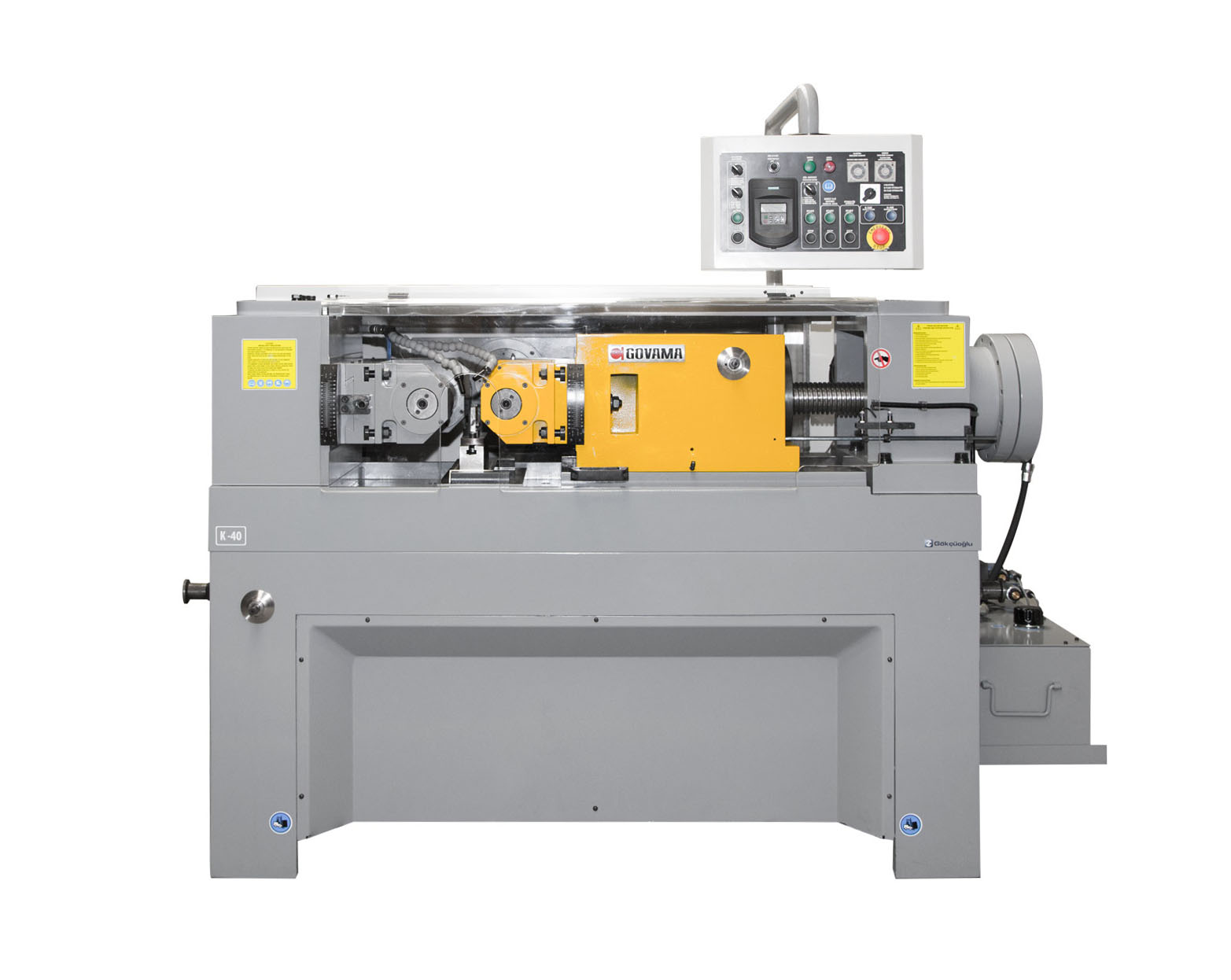

2 DIES THREAD ROLLING MACHINE WITH GUIDE
K-25
Other
K-50

In our two dies machines, which is able to generate forming up to 40 tons , you can obtain all kinds of screw, knurl and spline form with cold forming methods up to 7 mm pitch in a shorter time than machining process.

Click for Technical Video
Technicial Specifications

  • Rolling Force

    (kN)10-400

  • Speed Range

    (RPM)17-53

  • Min. Max. Tool Dia.

    (mm)Ø160 - Ø210

  • Die Spindle Dia.

    (mm)Ø69.85 (Ø80 optional)

  • Max. Die Length

    (mm)230

  • Workpiece Dia.

    (mm)Ø4 - Ø120

  • Max. Pitch

    (mm)7

  • Swivel Angle

     ±12°

  • Main Motor

    (KW)22

  • Total Power

    (KW)26

  • Weight

    (kg)4350
ADDITIONAL OPTIONS:
K-40 K-40

Product

Images


Click to download the Product catalog
