2R SERIES

2 DIES THREAD ROLLING MACHINE WITH COLUMNS
HK-85
Other
3R-3

In our two dies machines , which is able to generate forming up to 120 tons, you can obtain all kinds of screw, knurl and spline forms with cold forming methods up to 14 mm pitch in a shorter time than machining process.

Click for Technical Video
Technicial Specifications

  • Rolling Force

    (kN)10 - 1200

  • Speed Range

    (RPM)18-60

  • Min. Max. Tool Dia.

    (mm)Ø240 - Ø340

  • Die Spindle Dia.

    (mm)Ø120

  • Max. Die Length

    (mm)290

  • Workpiece Dia.

    (mm)Ø10 – Ø250

  • Max. Pitch

    (mm)14

  • Swivel Angle

     ±13°

  • Main Motor

    (KW)75

  • Total Power

    (KW)87

  • Weight

    (kg)21000
ADDITIONAL OPTIONS:

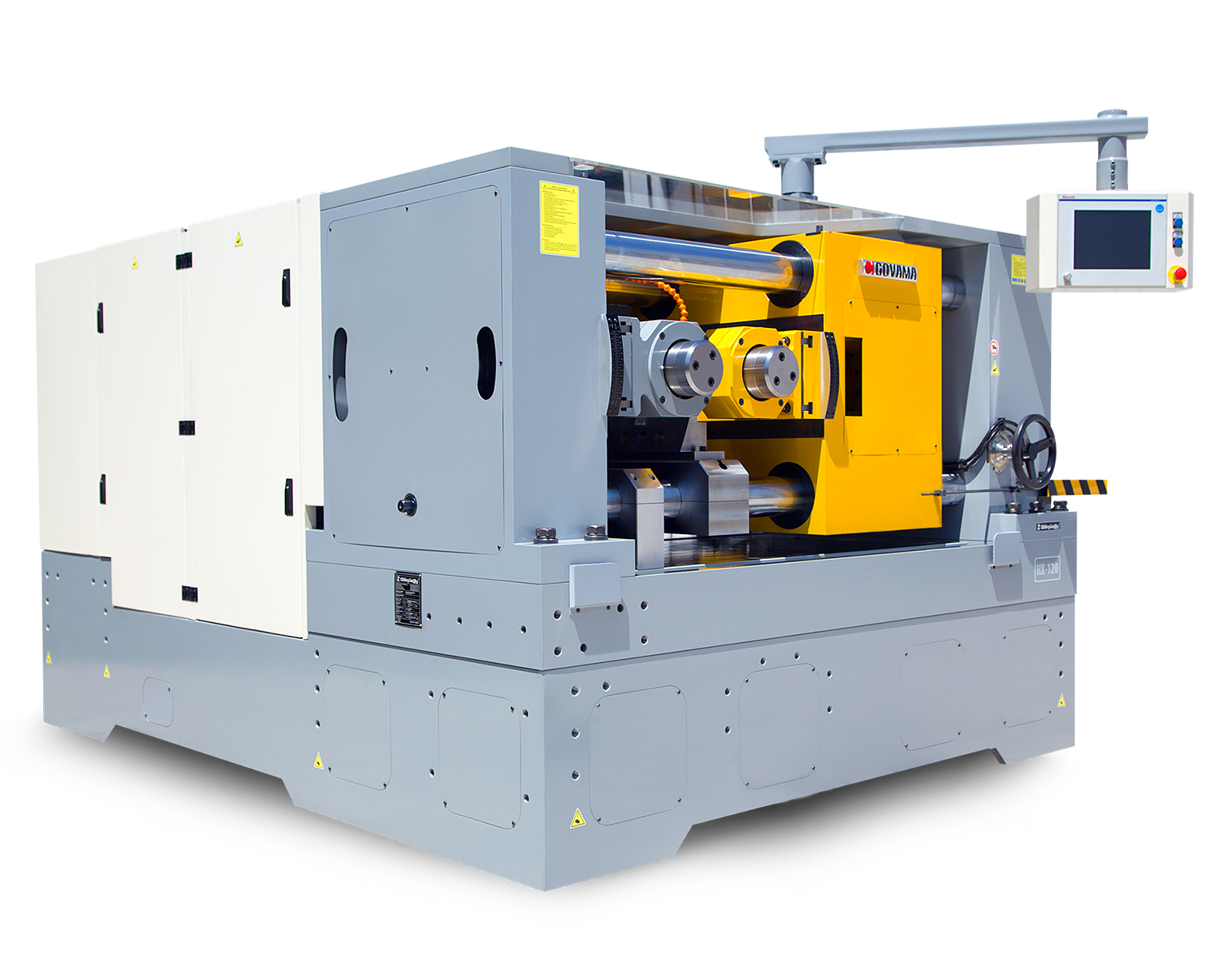

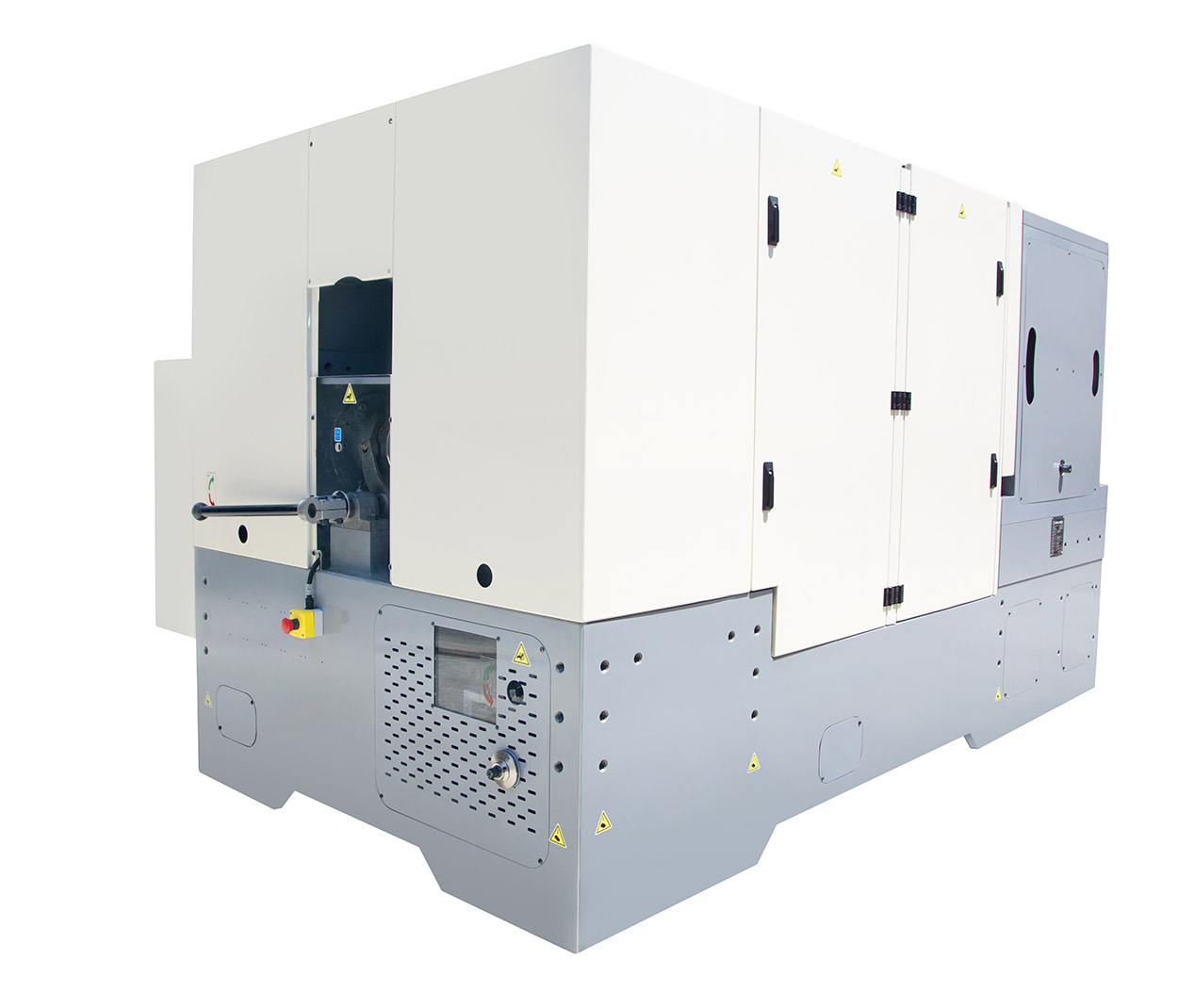

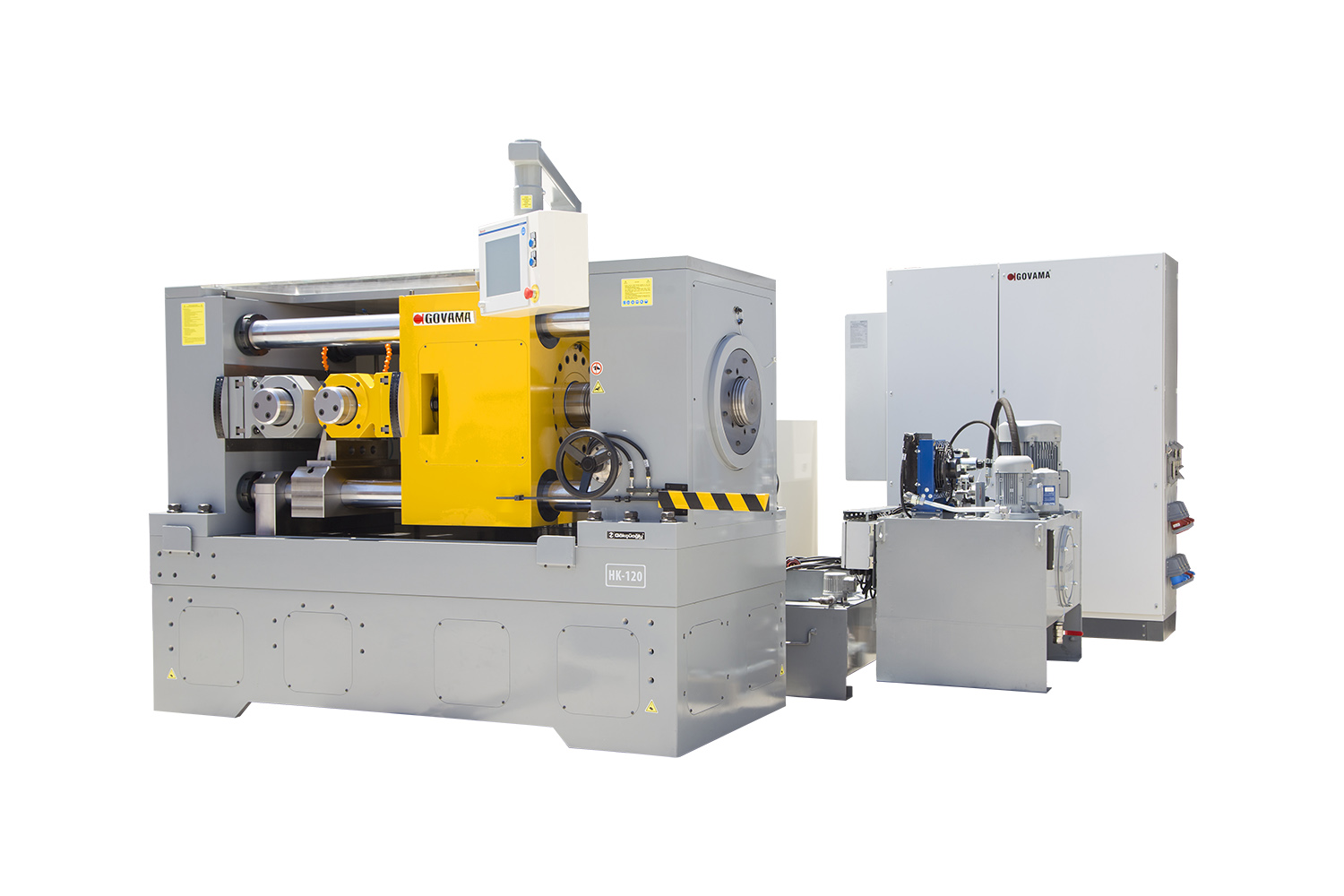

HK-120 HK-120

Product

Images


Click to download the Product catalog
