2R SERIES

2 DIES THREAD ROLLING MACHINE WITH COLUMNS
HK-60
Other
HK-120

In our two dies machines , which is able to generate forming up 85 tons, you can obtain all kinds of screw, knurl and spline forms with cold forming methods up to 10 mm pitch in a shorter time than machining process.

Click for Technical Video
Technicial Specifications

  • Rolling Force

    (kN)10 - 850

  • Speed Range

    (RPM)13 - 42

  • Min. Max. Tool Dia.

    (mm)Ø200 - Ø280

  • Die Spindle Dia.

    (mm)Ø100

  • Max. Die Length

    (mm)230

  • Workpiece Dia.

    (mm)Ø4 – Ø250

  • Max. Pitch

    (mm)10

  • Swivel Angle

     ±12°

  • Main Motor

    (KW)55

  • Total Power

    (KW)66

  • Weight

    (kg)10100
ADDITIONAL OPTIONS:

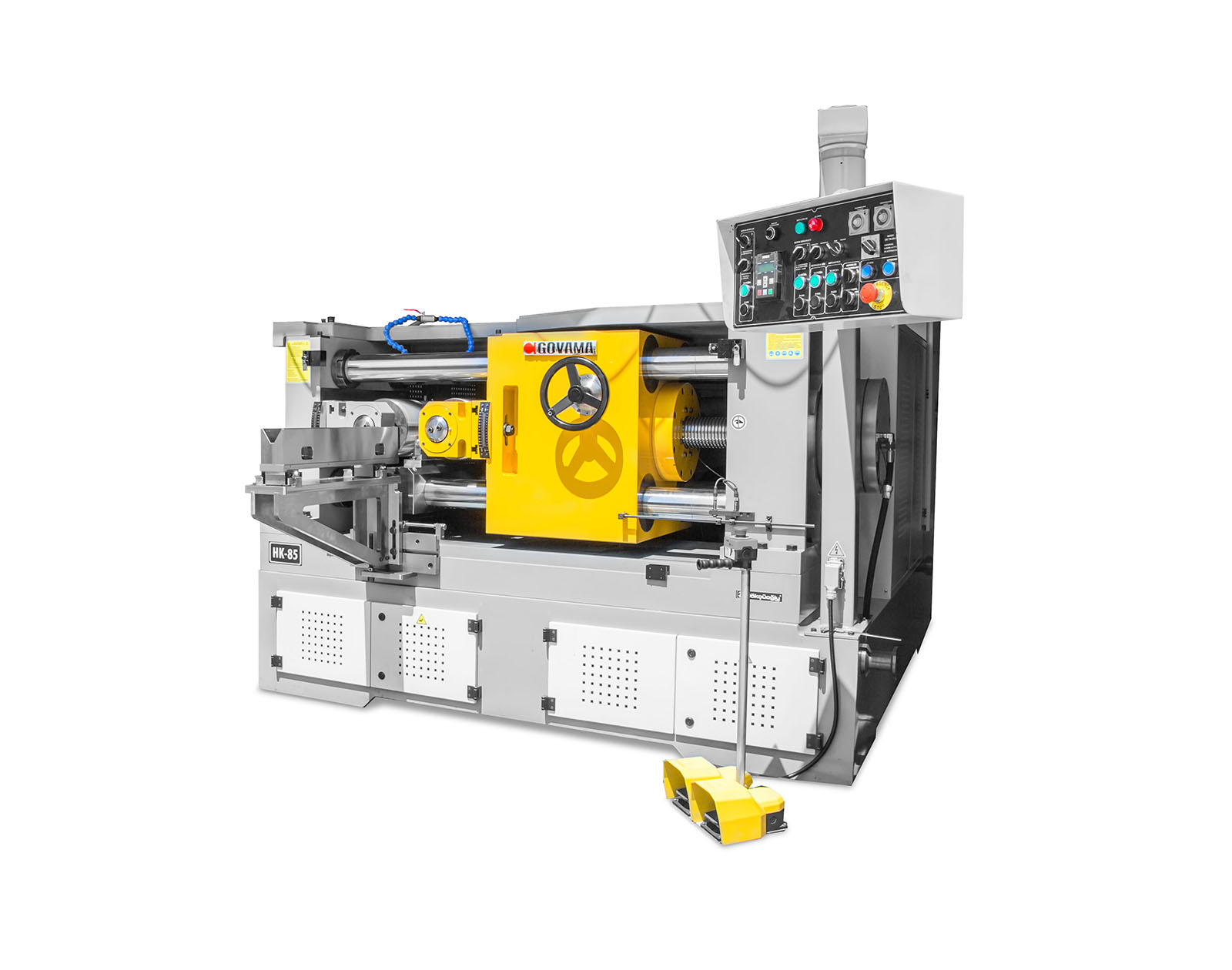

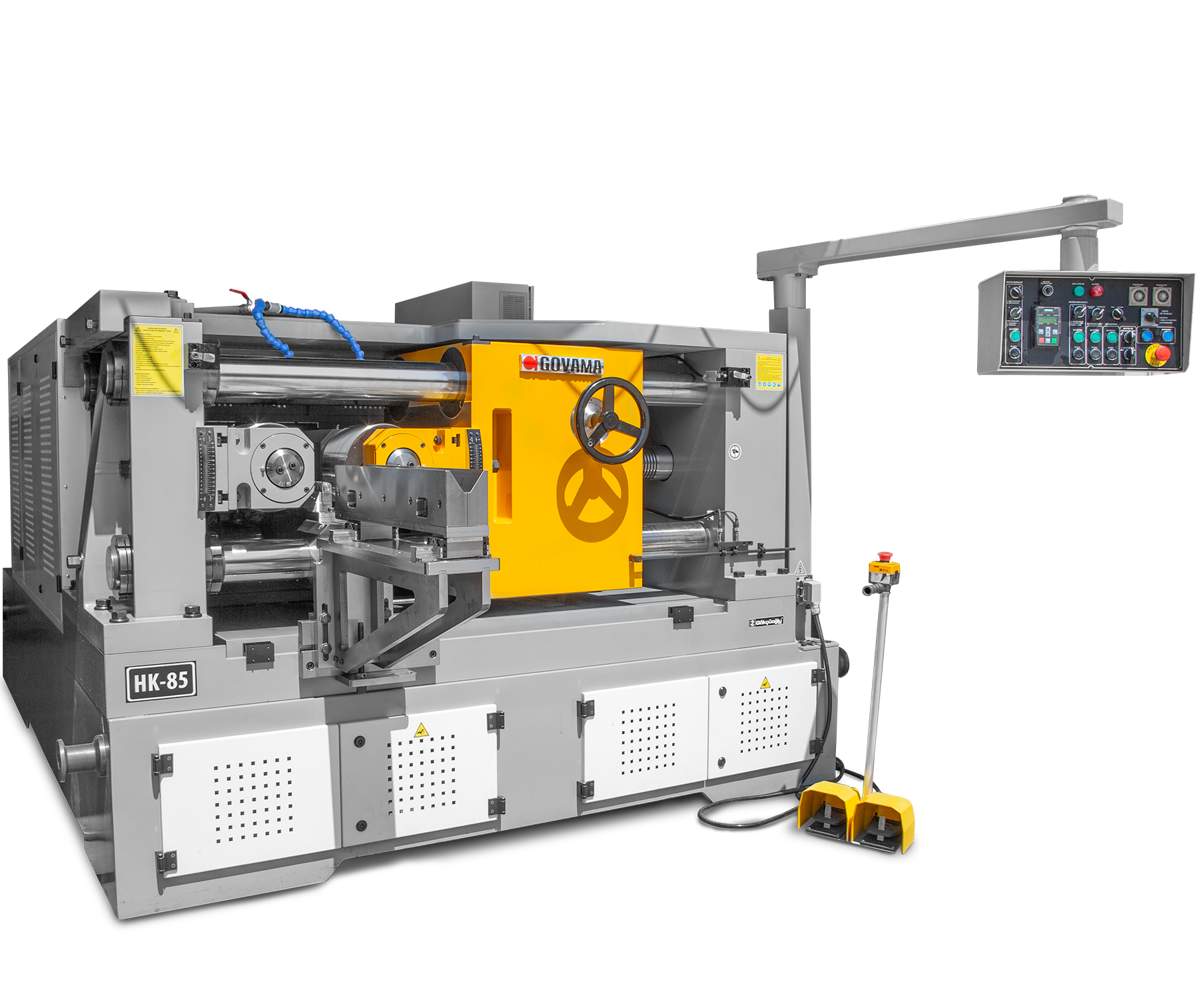

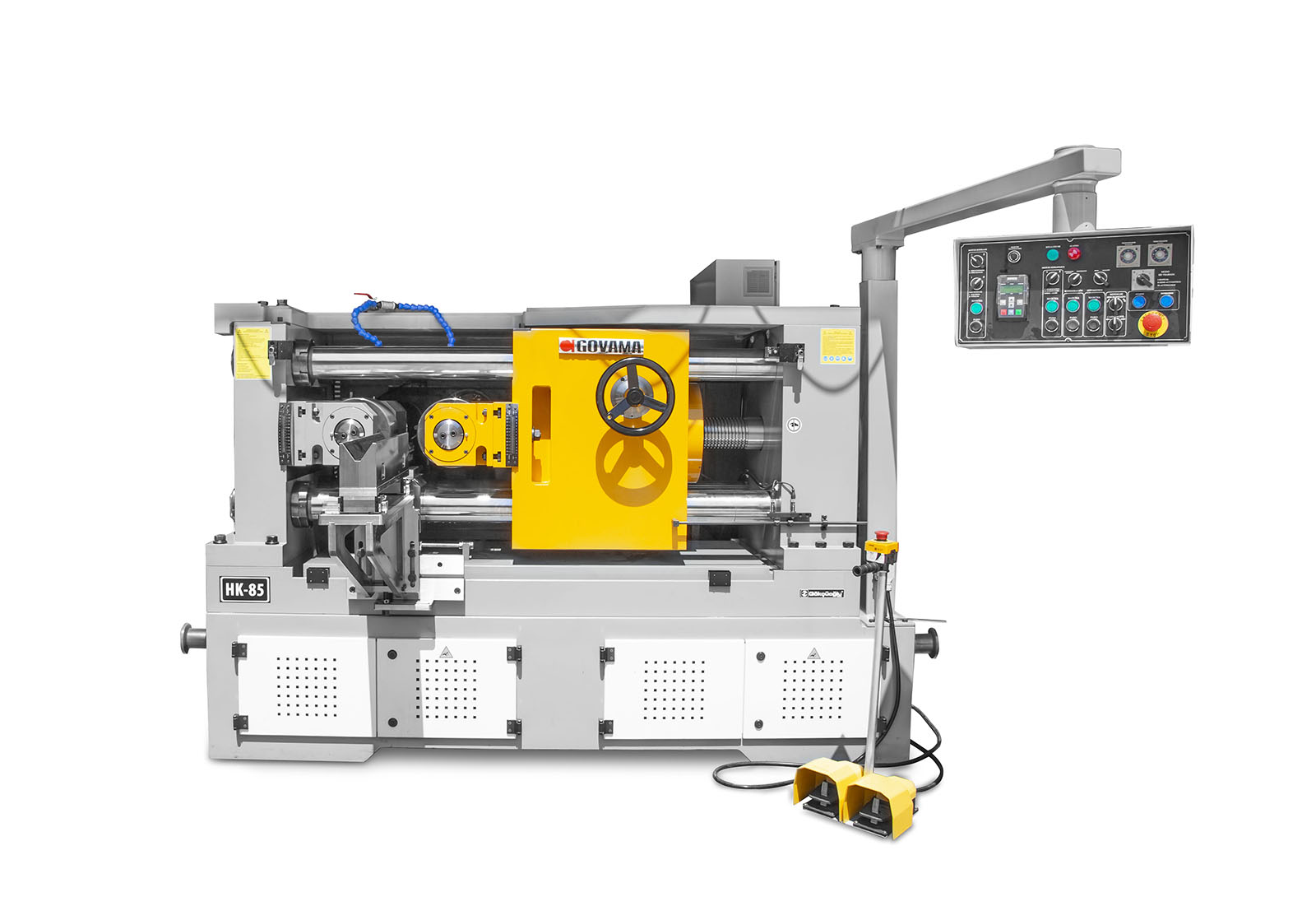

HK-85 HK-85

Product

Images


Click to download the Product catalog
