3R21-TRC
Other
GPM-16-C

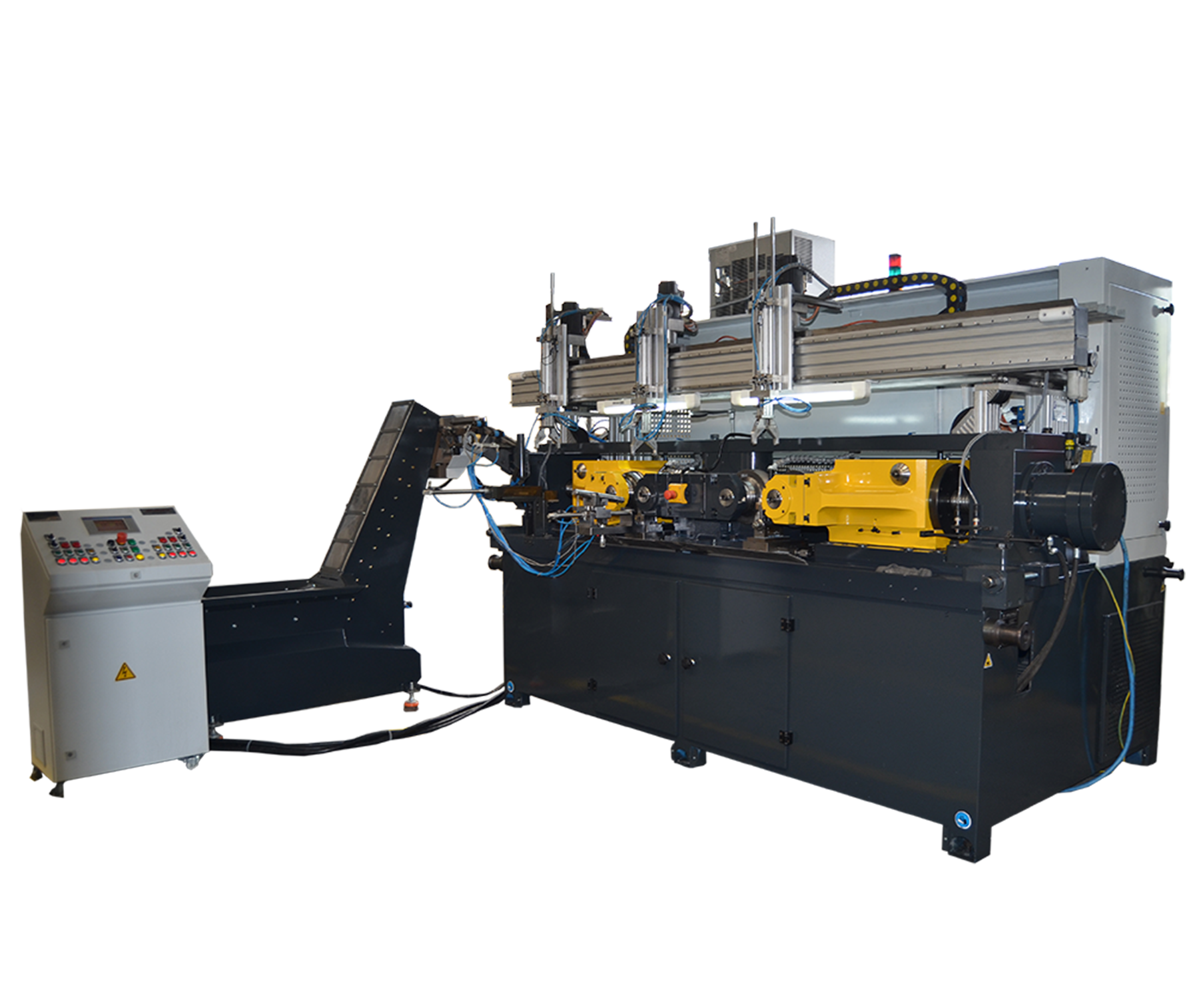

ROT 1 is a combined machine, which was designed specially for ball studs, is used to thread roll of shank of ball studs and burnish the ball area to achieve better surface roughness after machining process.

Click for Technical Video
Technicial Specifications

  • Rolling Force

    (kN)1 - 25 x 2

  • Speed Range

    (RPM)18-60

  • Min. Max. Tool Dia.

    (mm)Ø195- Ø250

  • Die Spindle Dia.

    (mm)Ø100

  • Max. Die Length

    (mm)100

  • Workpiece Dia.

    (mm)Ø3 – Ø100

  • Max. Pitch

    (mm)4

  • Main Motor

    (KW)7,5

  • Total Power

    (KW)19,5

  • Weight

    (kg)9000
ADDITIONAL OPTIONS:
ROT-1 ROT-1
