SPECIAL

MACHINES FOR APPLICATIONS

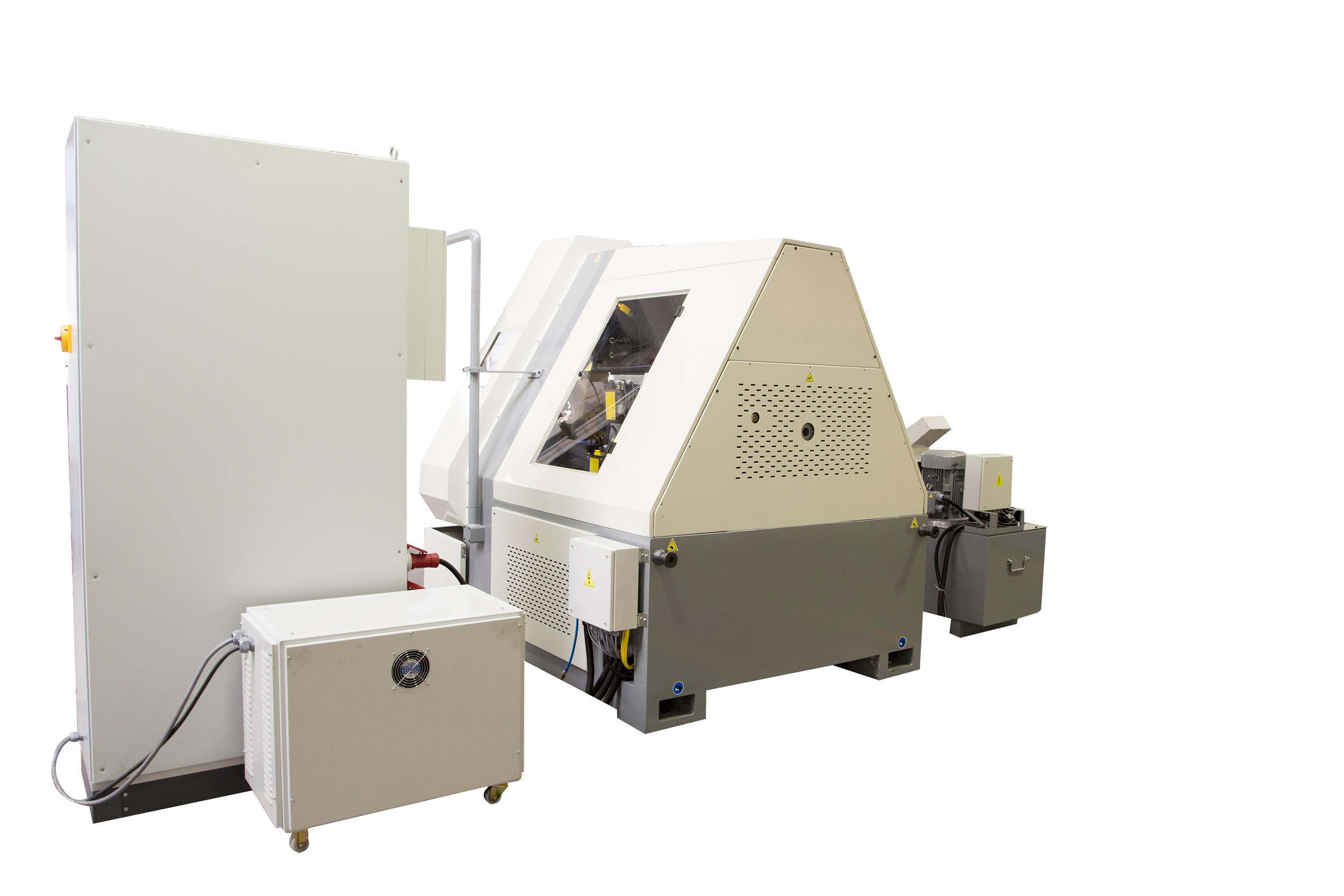

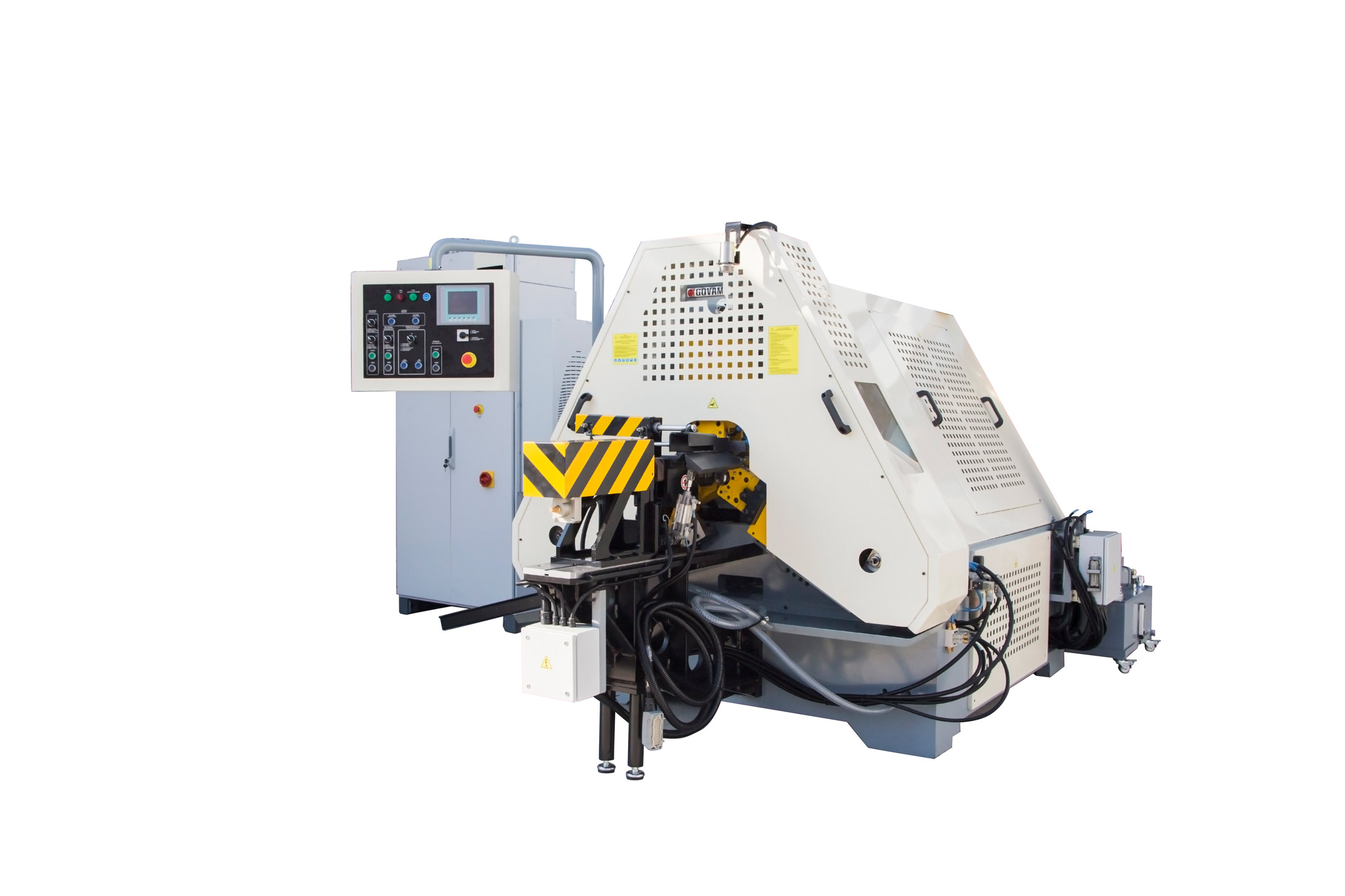

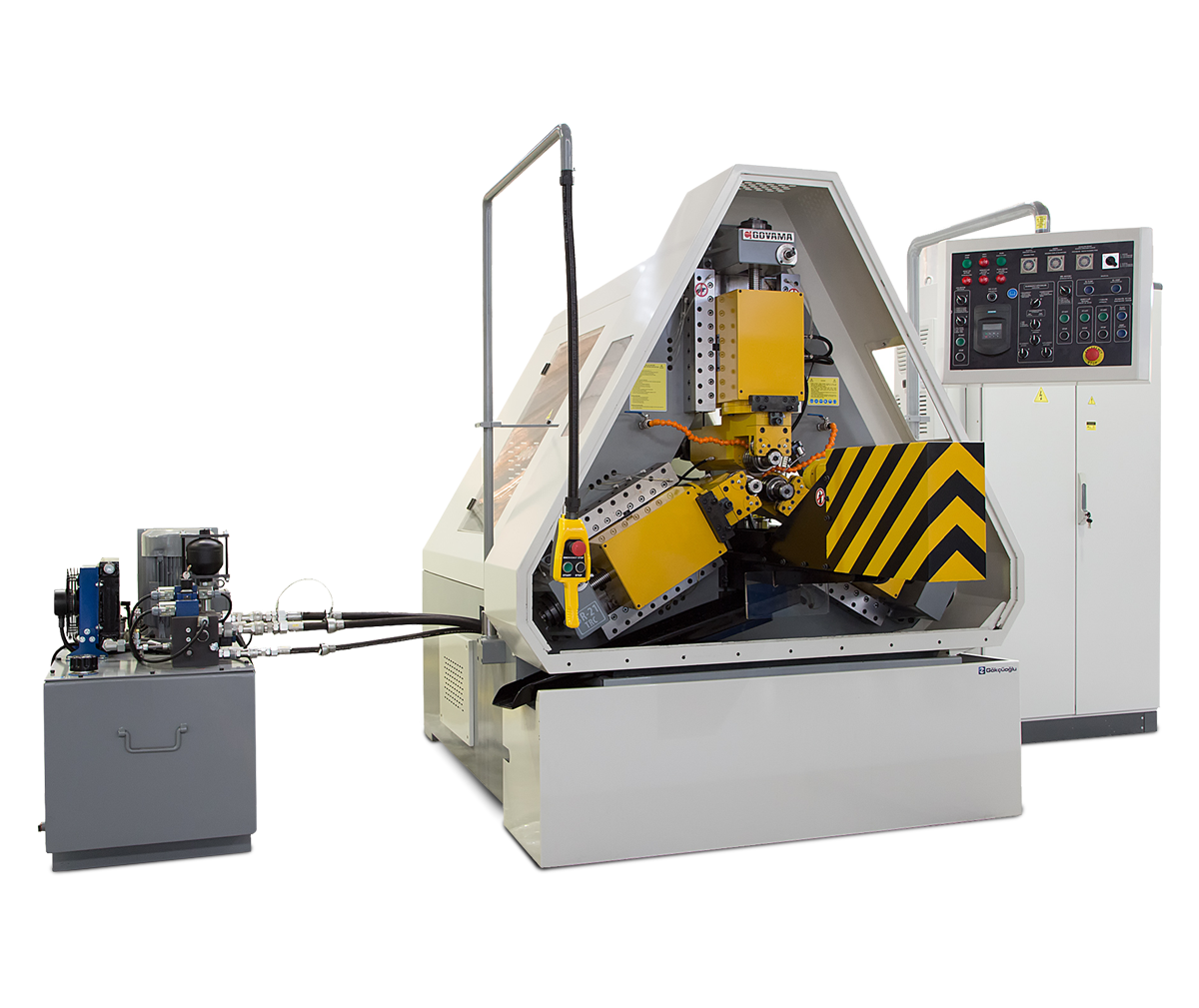

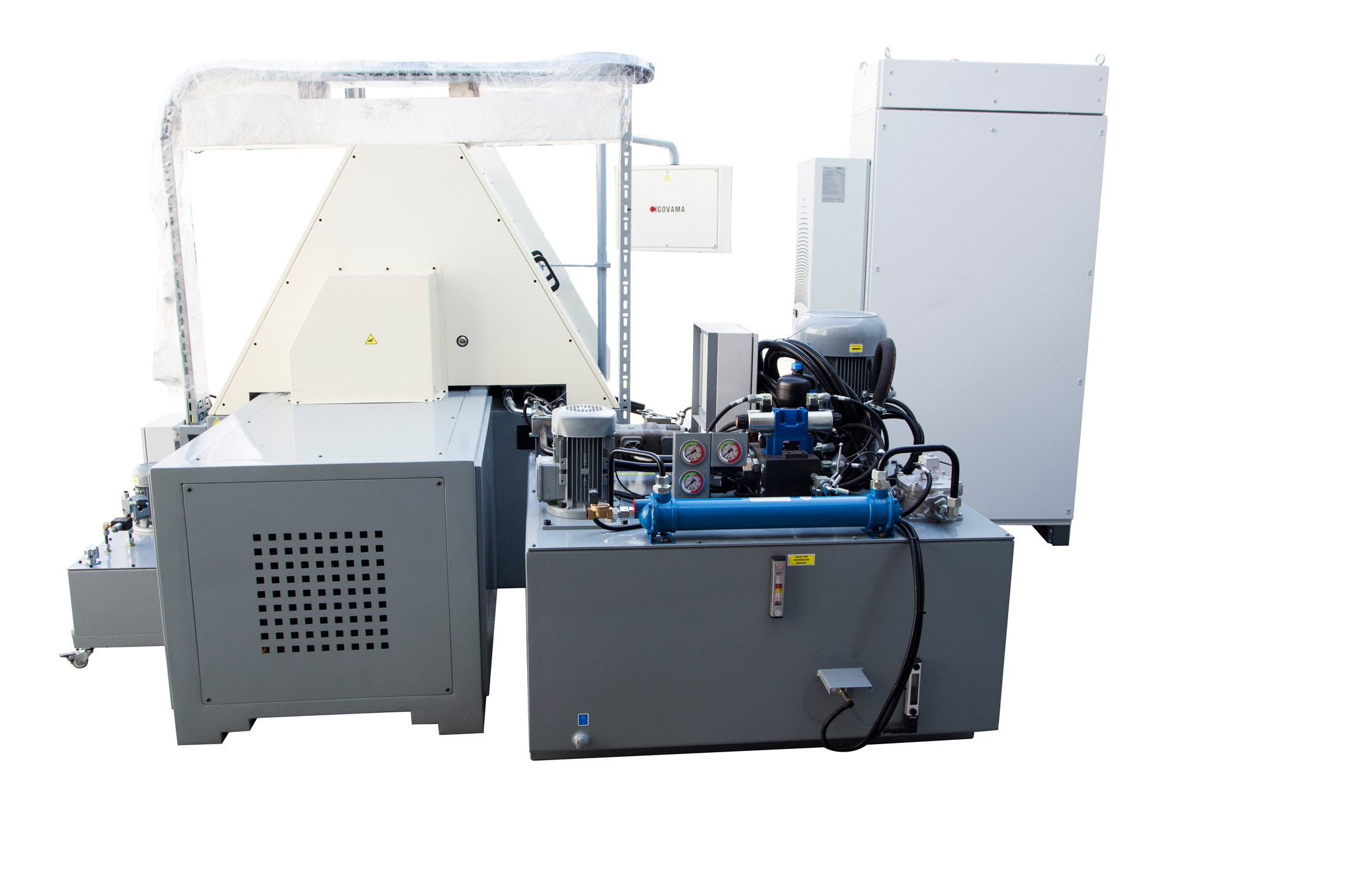

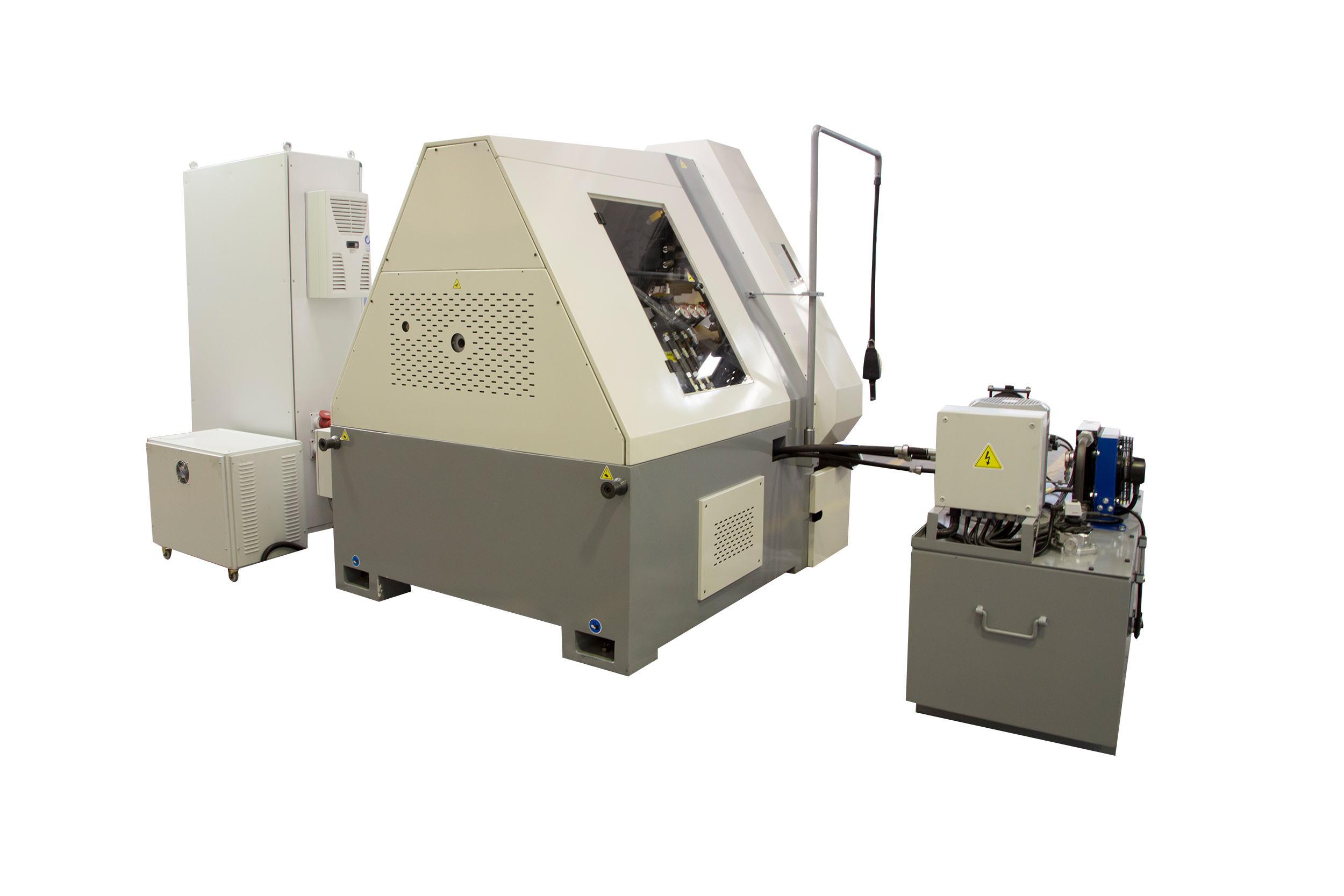

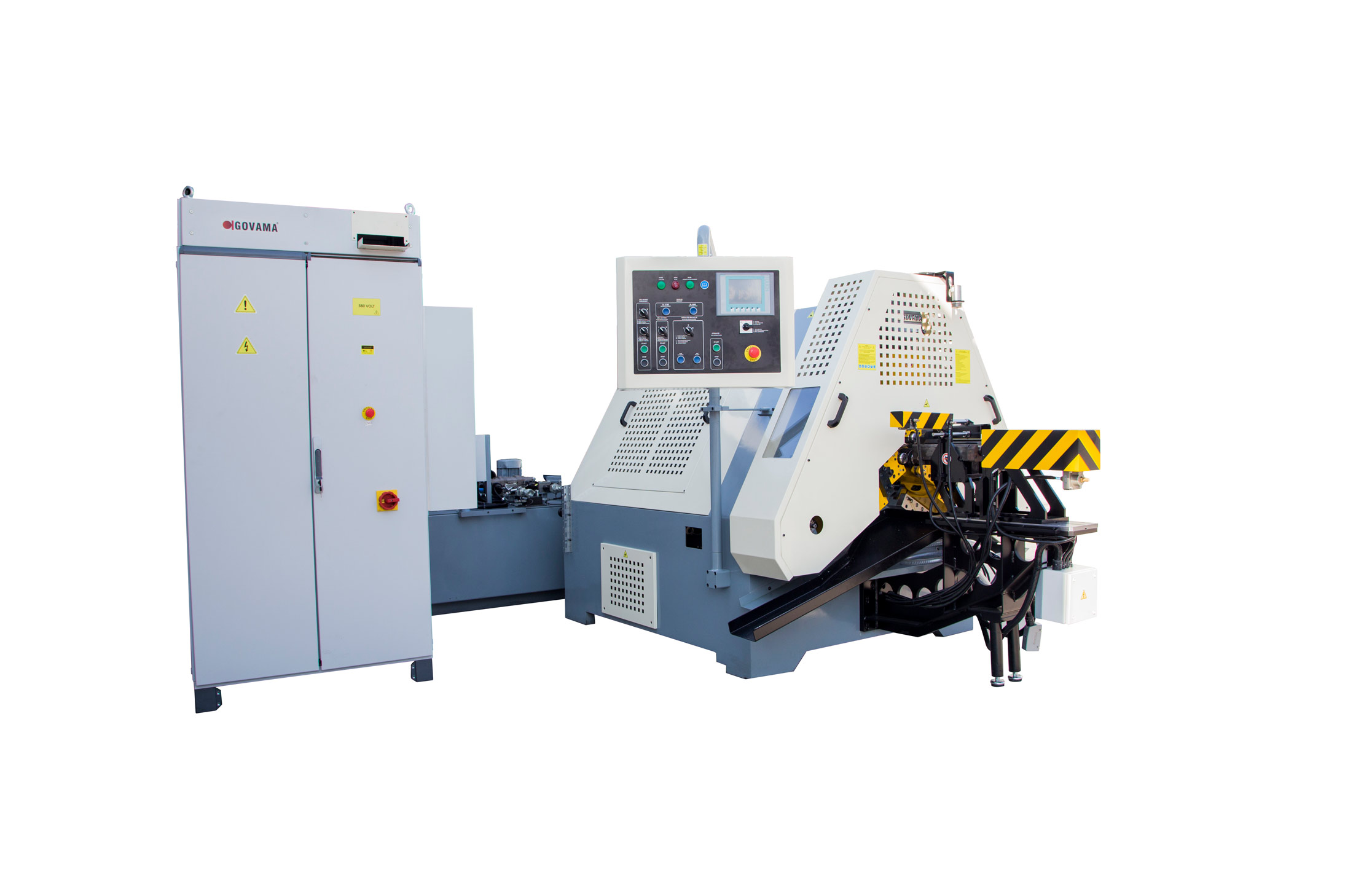

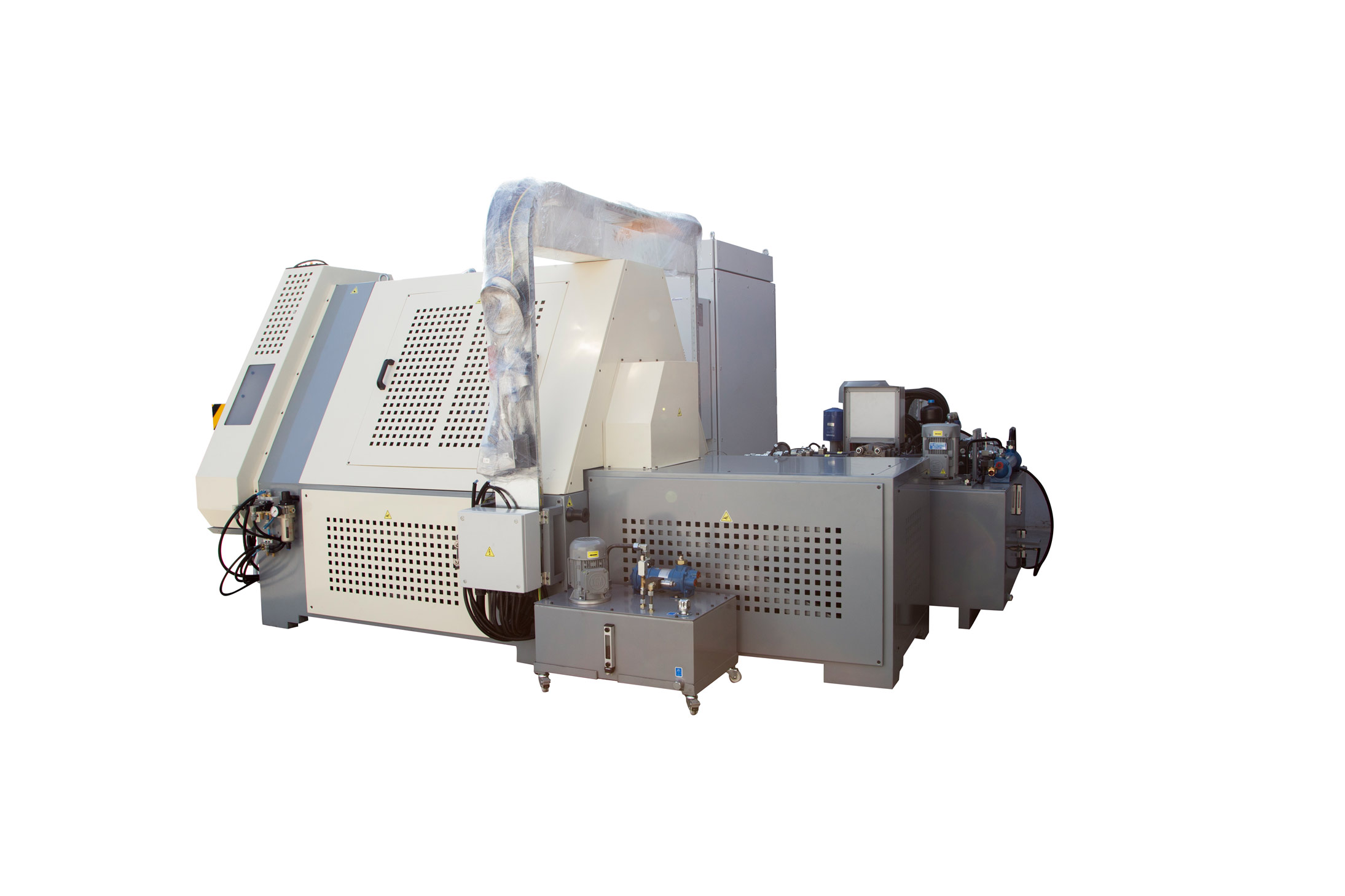

Our machine thanks to special structure is used for railway bolt manufacturing with hot forming operations.

Technicial Specifications
  • Rolling Force

    (kN)10 - 210
  • Speed Range

    (RPM)203-660
  • Min. Max. Tool Dia.

    (mm)Ø70 - Ø140
  • Die Spindle Dia.

    (mm)Ø40
  • Max. Die Length

    (mm)80
  • Workpiece Dia.

    (mm)Ø14 – Ø90 (Ø65)
  • Swivel Angle

     ±8°
  • Max Pitch For Bars

    (mm)6,35
  • Main Motor

    (KW)15
  • Total Power

    (KW)22,5
  • Weight

    (kg)4250
