3R SERIES

3 DIES THREAD ROLLING MACHINE
HK-120
Other

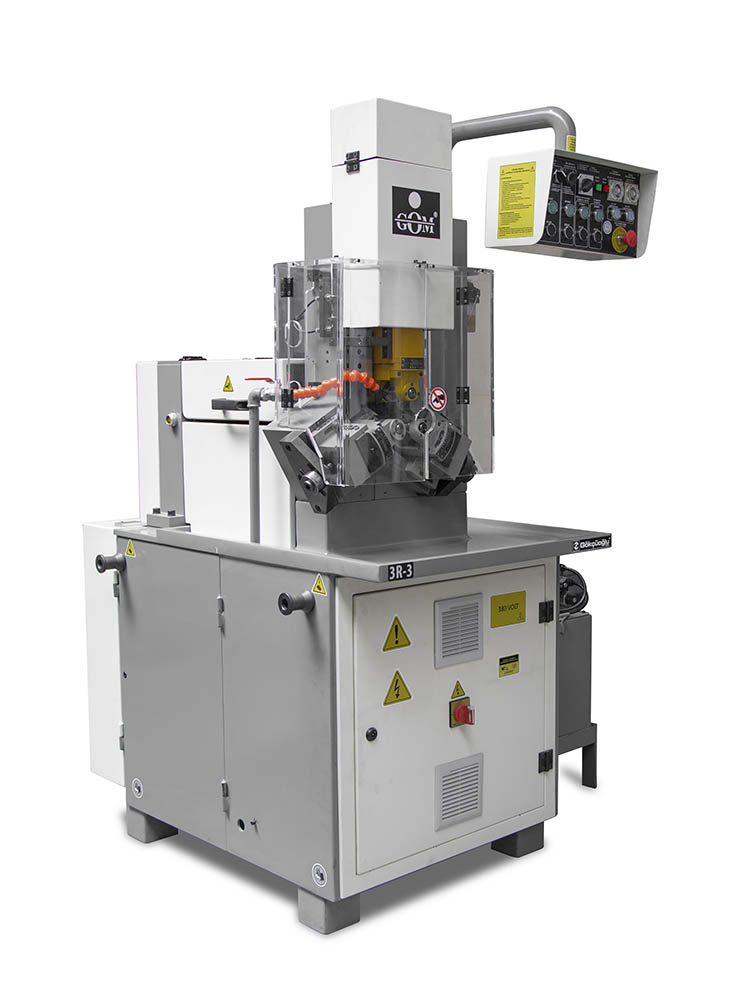

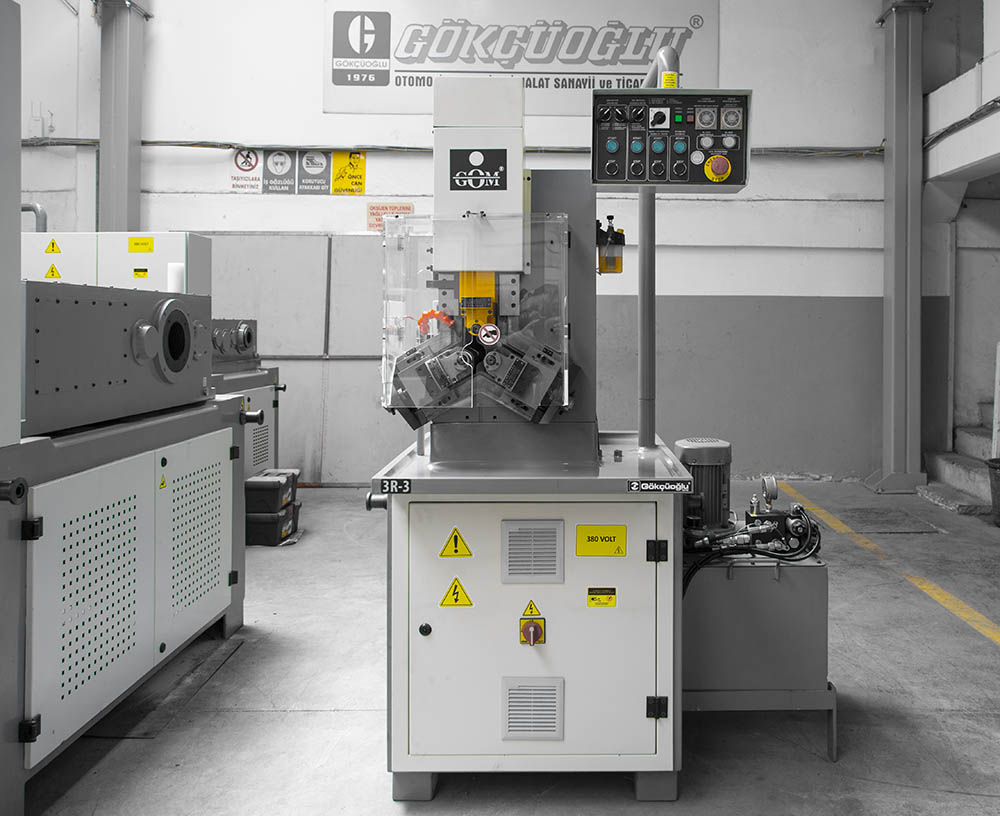

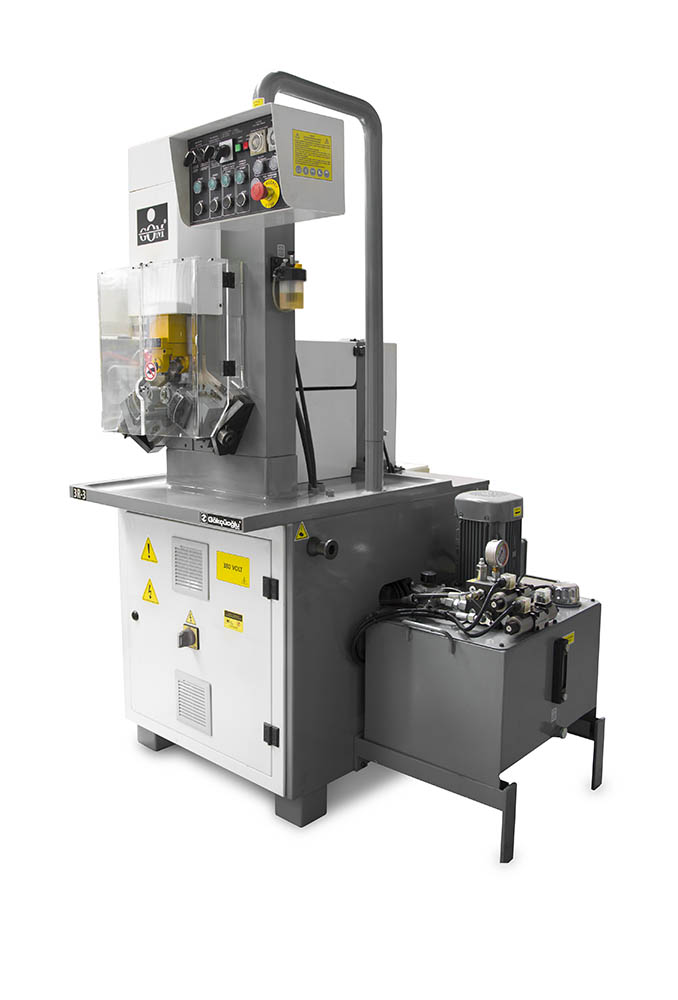

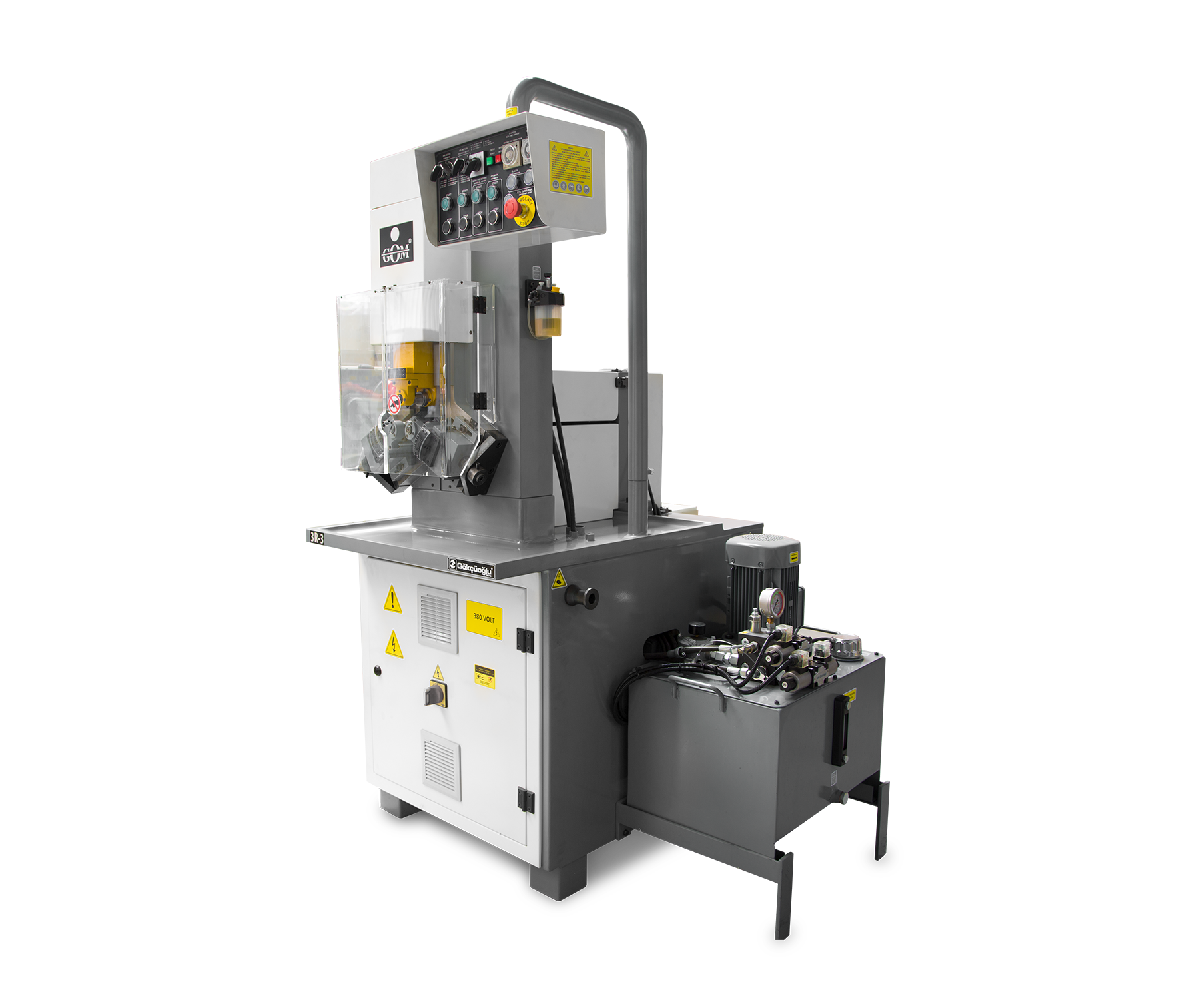

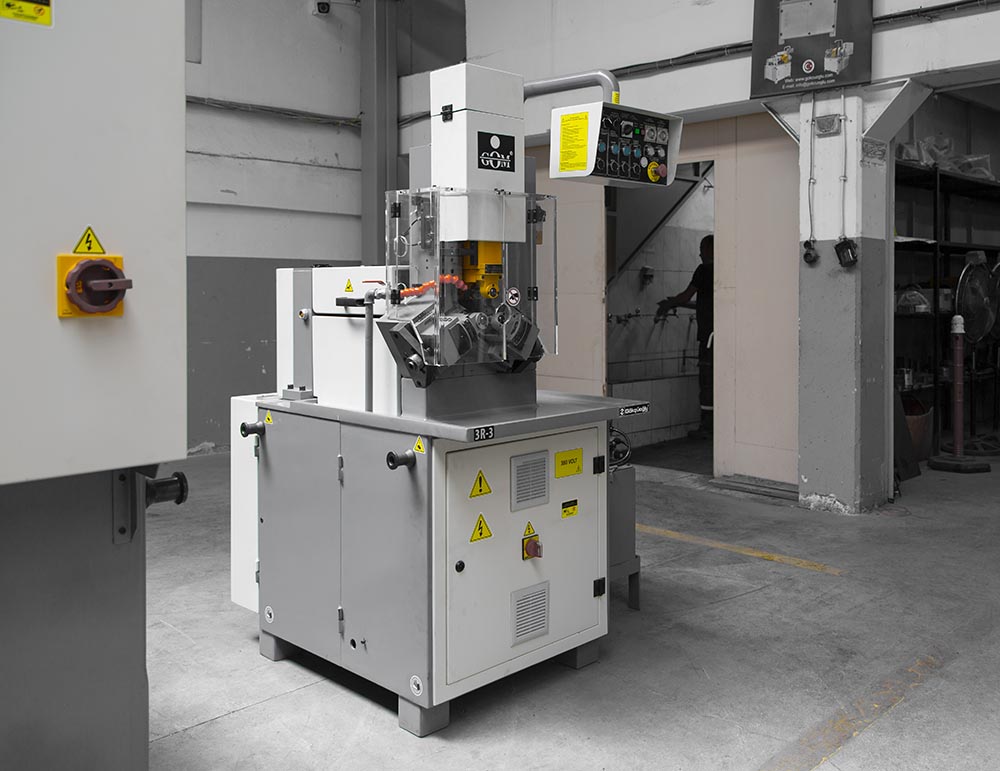

3R-9

In our three dies machines , which is able to generate forming up to 3 tons, you can obtain all kinds of screw, knurl and spline forms with cold forming methods up to  1.75 mm pitch in a shorter time than machining process.

Technicial Specifications

  • Rolling Force

    (kN)10 - 30

  • Max Pitch For Pipe

    (mm)1,75

  • Speed Range

    (RPM)42-63-85-107-154-194-261-387

  • Min. Max. Tool Dia.

    (mm)Ø41-Ø80

  • Die Spindle Dia.

    (mm)Ø25,4

  • Max. Die Length

    (mm)40

  • Workpiece Dia.

    (mm)Ø8 – Ø30

  • Swivel Angle

     ±8°

  • Max Pitch For Bars

    (mm)1,5

  • Main Motor

    (KW)2,2

  • Total Power

    (KW)3,8

  • Weight

    (kg)750
ADDITIONAL OPTIONS:
3R-3 3R-3

Product

Images


Click to download the Product catalog
