2R SERIES

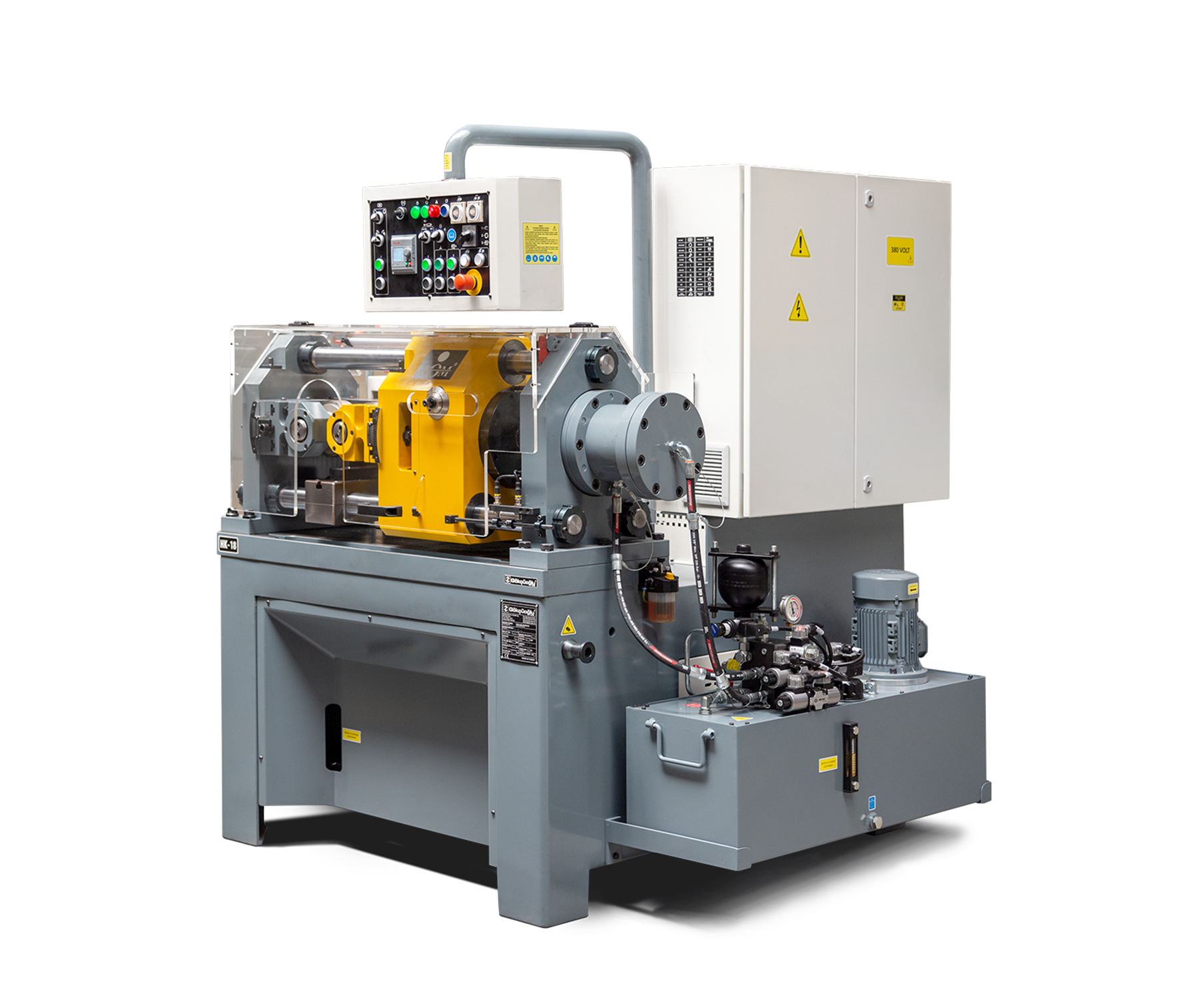

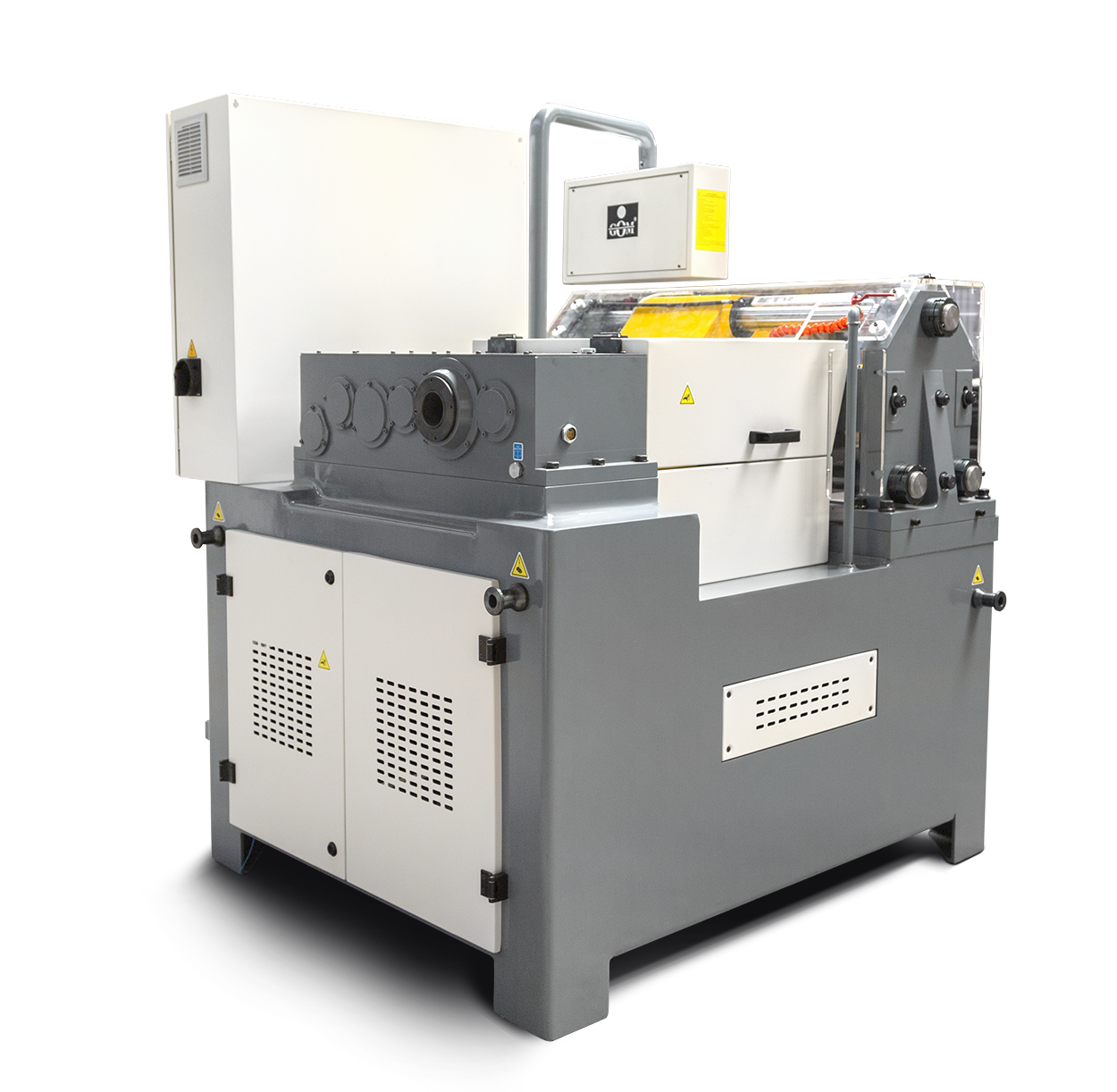

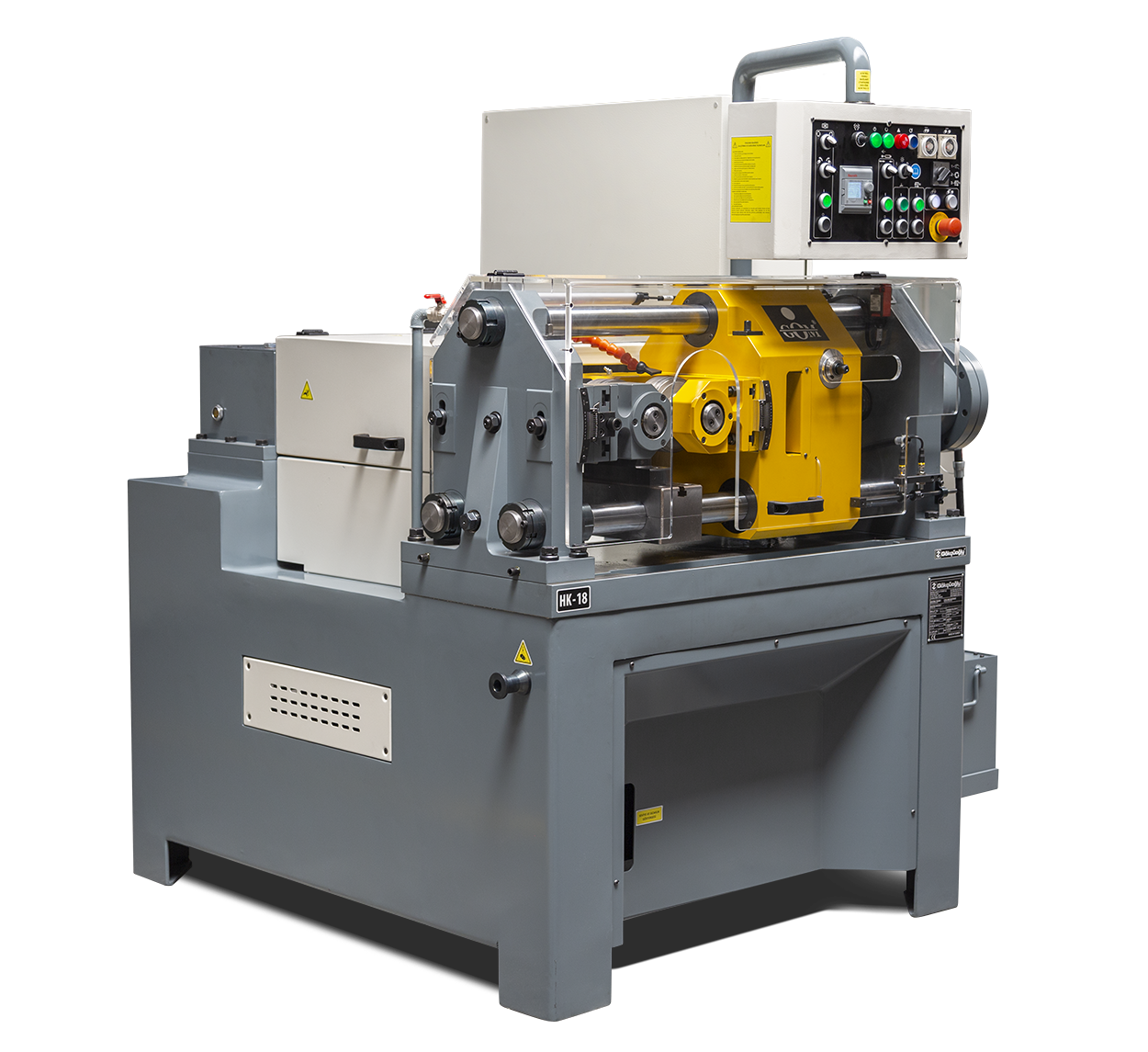

2 DIES THREAD ROLLING MACHINE WITH COLUMNS

In our two dies machines , which is able to generate forming up to 18 tons , you can obtain all kinds of screw, knurl and spline forms with cold forming methods up to 3 mm pitch up to in a shorter time than machining process.

Technicial Specifications
  • Rolling Force

    (kN)10 - 180
  • Speed Range

    (RPM)18 - 62
  • Min. Max. Tool Dia.

    (mm)Ø140 - Ø190
  • Die Spindle Dia.

    (mm)Ø54 (Ø40 opt.)
  • Max. Die Length

    (mm)125
  • Workpiece Dia.

    (mm)Ø3 – Ø30
  • Max. Pitch

    (mm)3
  • Swivel Angle

     ±8°
  • Main Motor

    (KW)7,5
  • Total Power

    (KW)10,1
  • Weight

    (kg)1920
