2R SERIES

2 DIES THREAD ROLLING MACHINE WITH COLUMNS
HK-40
Other
HK-85

In our two dies machines , which is able to generate forming up 60 tons, you can obtain all kinds of screw, knurl and spline forms with cold forming methods up to 8 mm pitch in a shorter time than machining process.

Technicial Specifications

  • Rolling Force

    (kN)10 - 600

  • Speed Range

    (RPM)13 - 42

  • Min. Max. Tool Dia.

    (mm)Ø160 - Ø280

  • Die Spindle Dia.

    (mm)Ø80 (Ø100 opt.)

  • Max. Die Length

    (mm)230

  • Workpiece Dia.

    (mm)Ø4 – Ø250

  • Max. Pitch

    (mm)8

  • Swivel Angle

     ±12°

  • Main Motor

    (KW)37

  • Total Power

    (KW)47

  • Weight

    (kg)9200
ADDITIONAL OPTIONS:

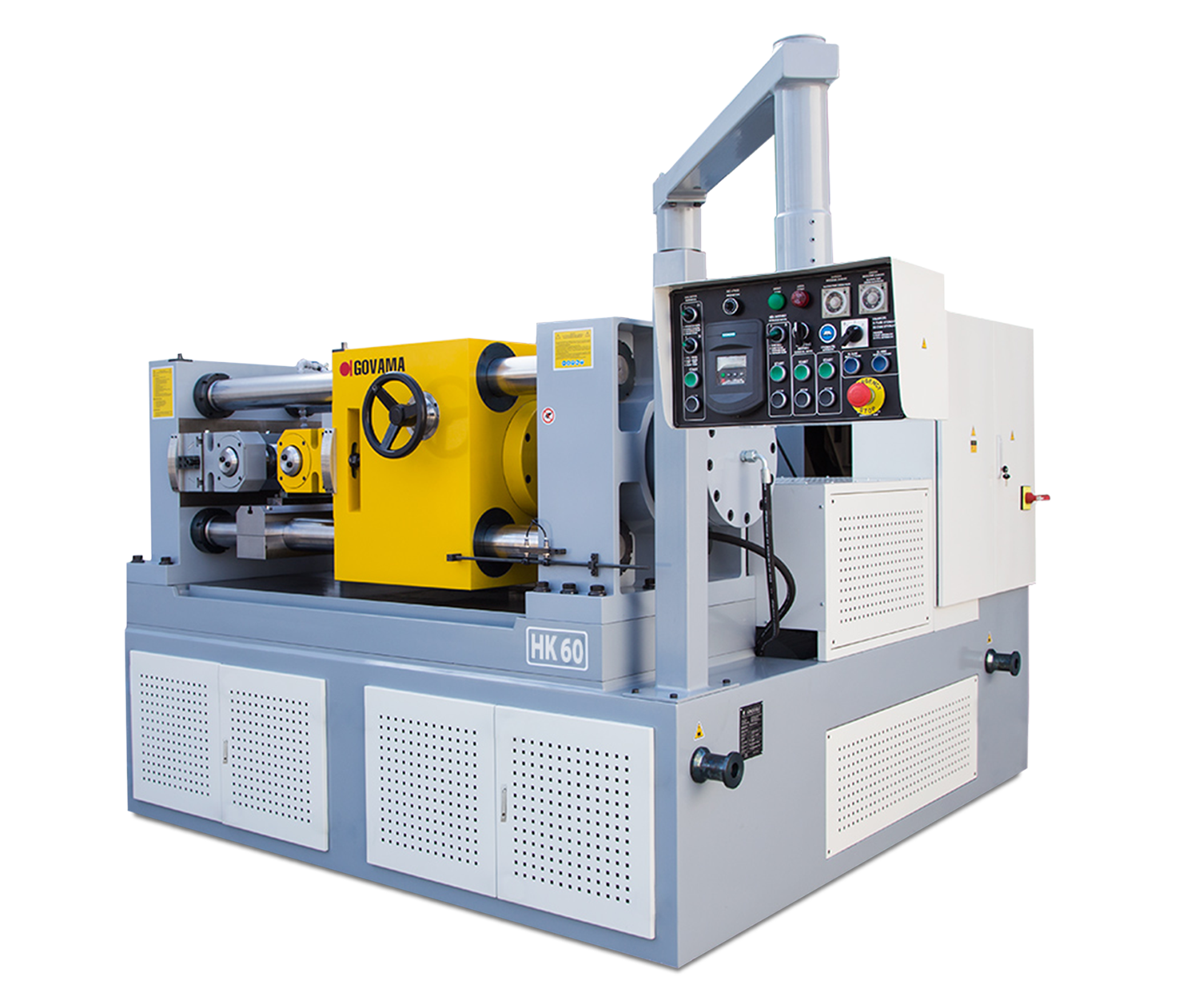

HK-60 HK-60
