3R SERIES

3 DIES THREAD ROLLING MACHINE
3R-12
Other
3R-21

In our three dies machines, which is able to generate forming up to 15 tons, you can obtain all kinds of screws, knurl and spline forms with cold forming methods up to  4 mm pitch in a shorter time than machining process.

Click for Technical Video
Technicial Specifications

  • Rolling Force

    (kN)10 - 150

  • Max Pitch For Pipe

    (mm)4

  • Speed Range

    (RPM)25 - 85

  • Min. Max. Tool Dia.

    (mm)Ø70 - Ø140

  • Die Spindle Dia.

    (mm)Ø40

  • Max. Die Length

    (mm)90

  • Workpiece Dia.

    (mm)Ø12 – Ø90 (Ø65)

  • Swivel Angle

     ±8°

  • Max Pitch For Bars

    (mm)2

  • Main Motor

    (KW)11

  • Total Power

    (KW)15,3

  • Weight

    (kg)4150
ADDITIONAL OPTIONS:

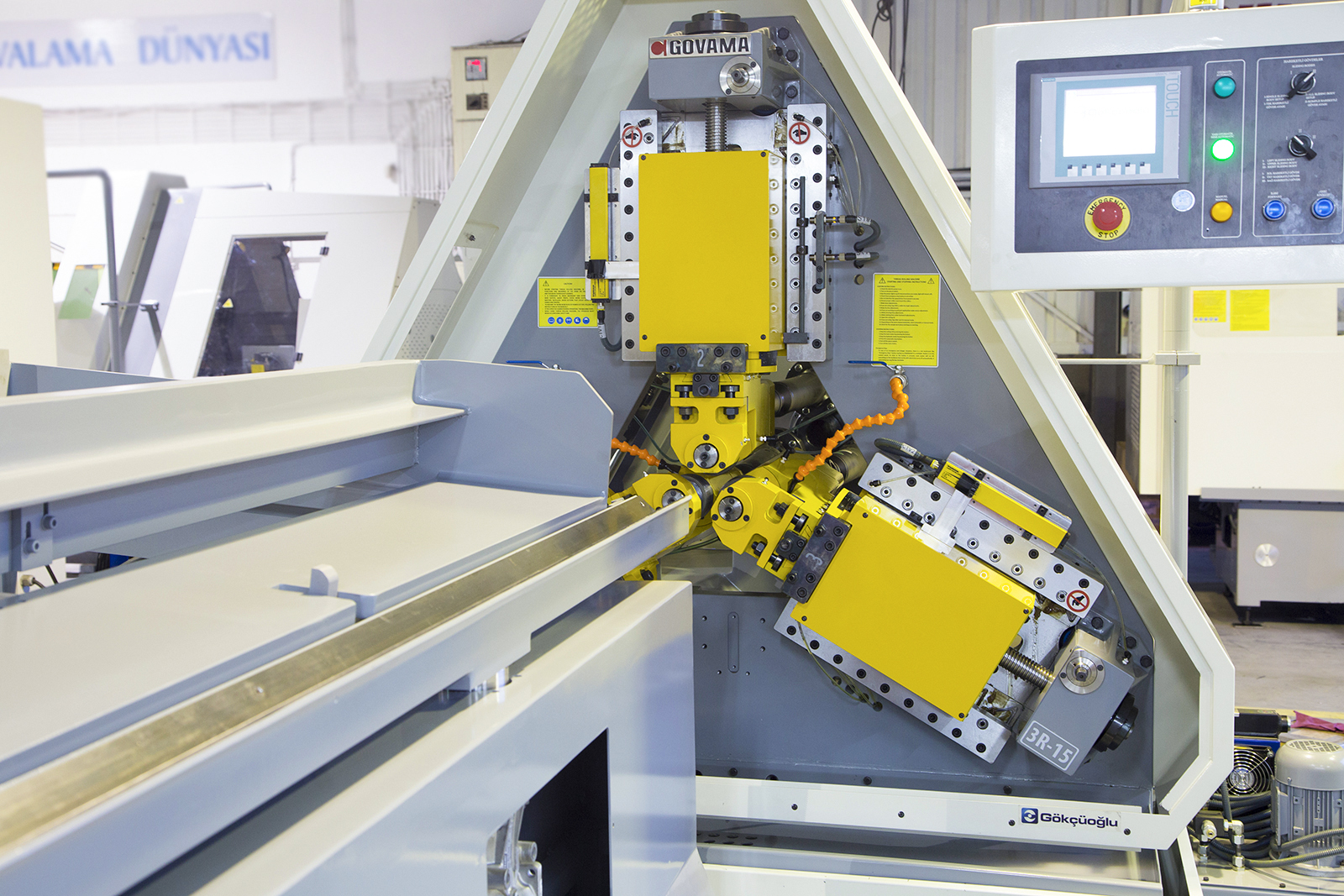

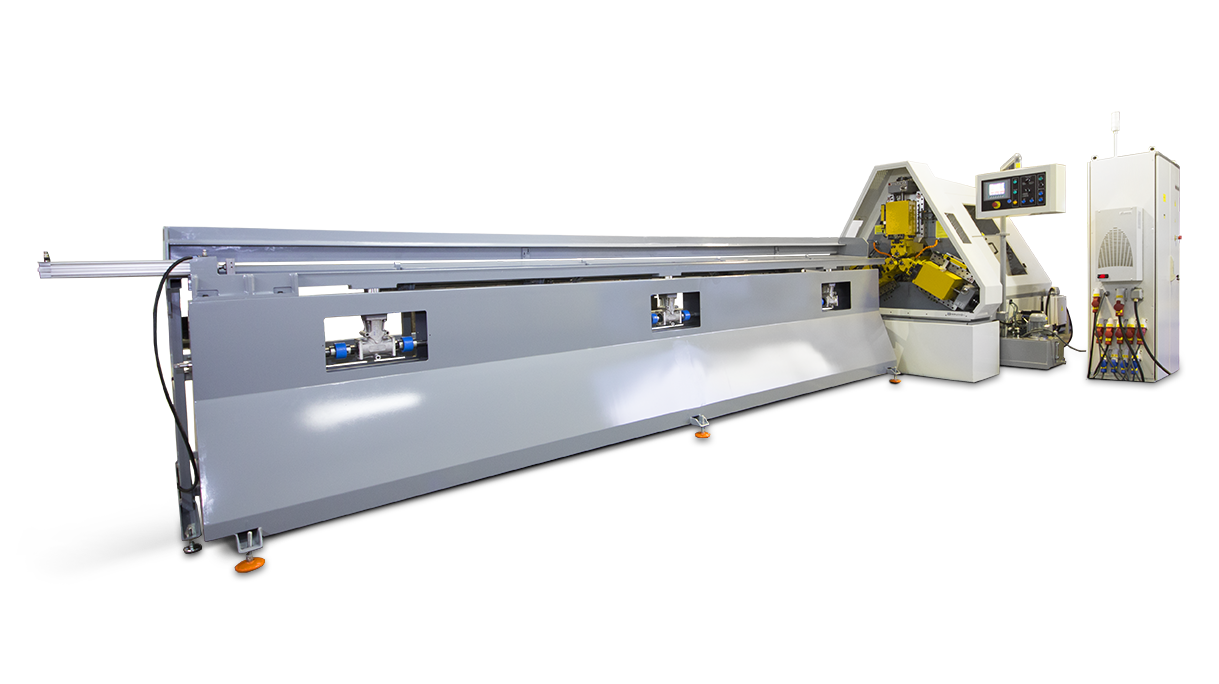

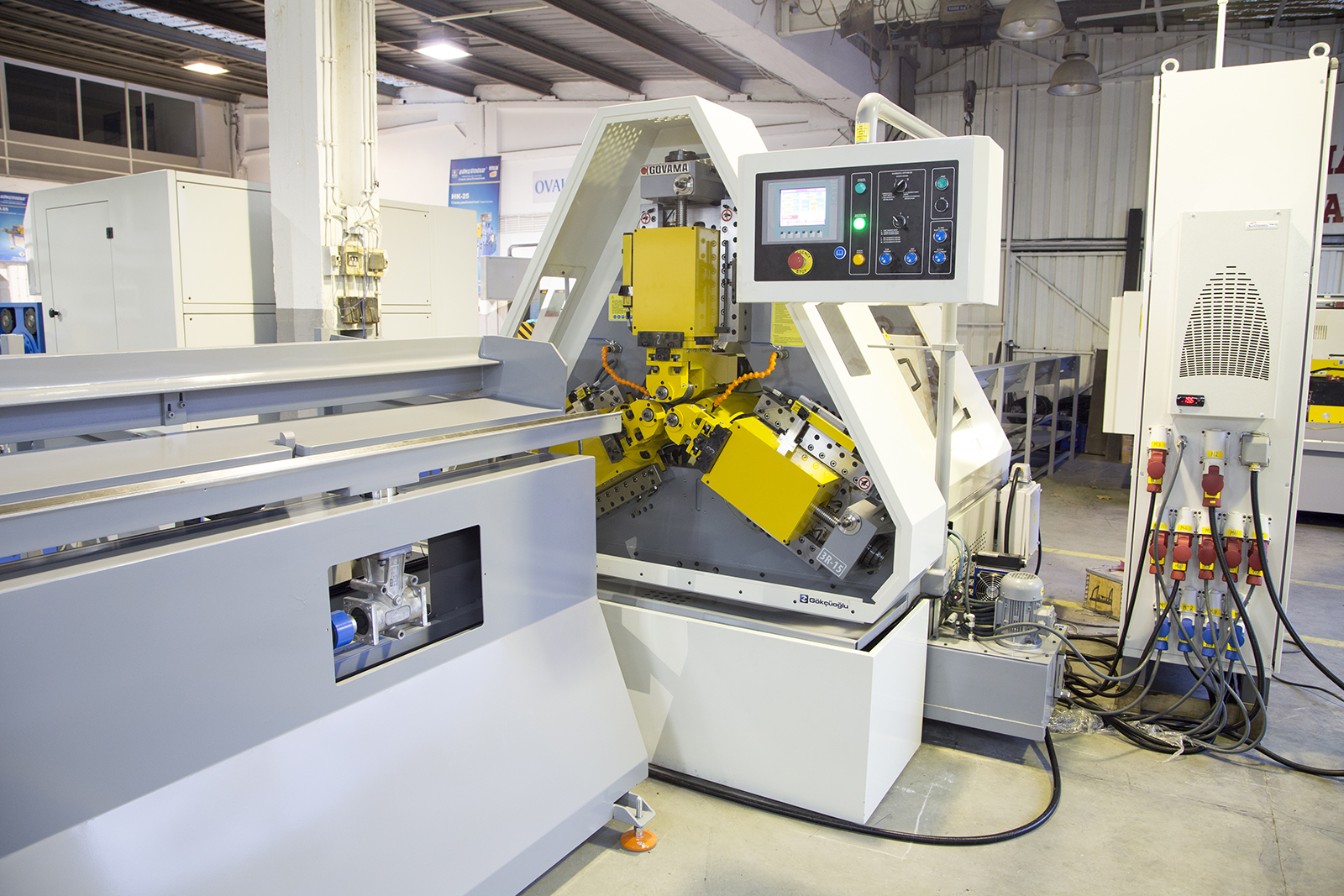

3R-15 3R-15

Product

Images


Click to download the Product catalog
