2R SERIES

2 DIES THREAD ROLLING MACHINE WITH COLUMNS
HK-25
Other
HK-60

In our two dies machines , which is able to generate forming up to 40 tons , you can obtain all kinds of screw, knurl and spline forms with cold forming methods up to 7 mm pitch in a shorter time than machining process.

Click for Technical Video
Technicial Specifications

  • Rolling Force

    (kN)10 - 400

  • Speed Range

    (RPM)17-53

  • Min. Max. Tool Dia.

    (mm)Ø160 - Ø210

  • Die Spindle Dia.

    (mm)Ø69.85 (Ø80 opt.)

  • Max. Die Length

    (mm)230

  • Workpiece Dia.

    (mm)Ø4 – Ø120

  • Max. Pitch

    (mm)7

  • Swivel Angle

     ±12°

  • Main Motor

    (KW)18

  • Total Power

    (KW)21,3

  • Weight

    (kg)4800
ADDITIONAL OPTIONS:

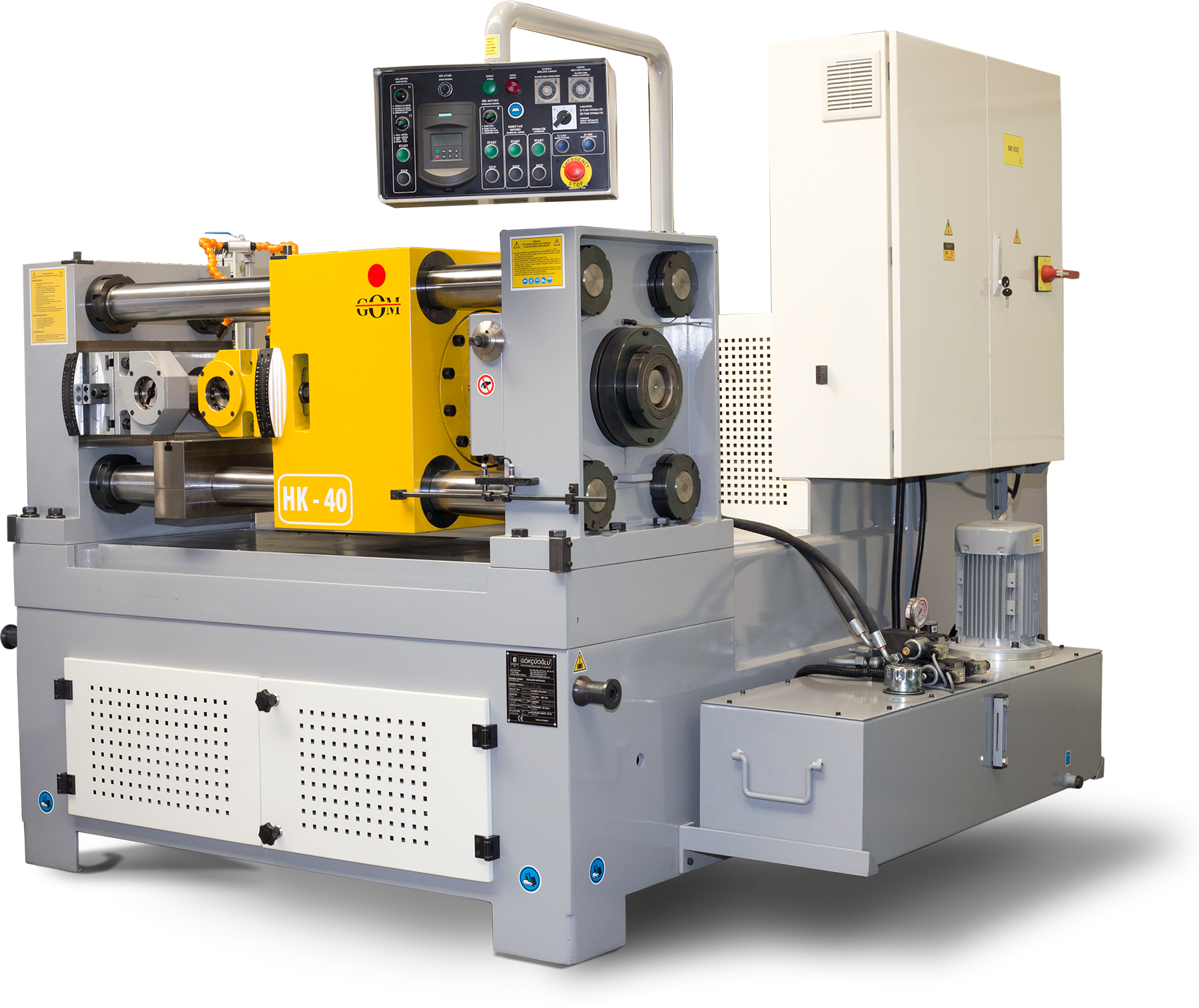

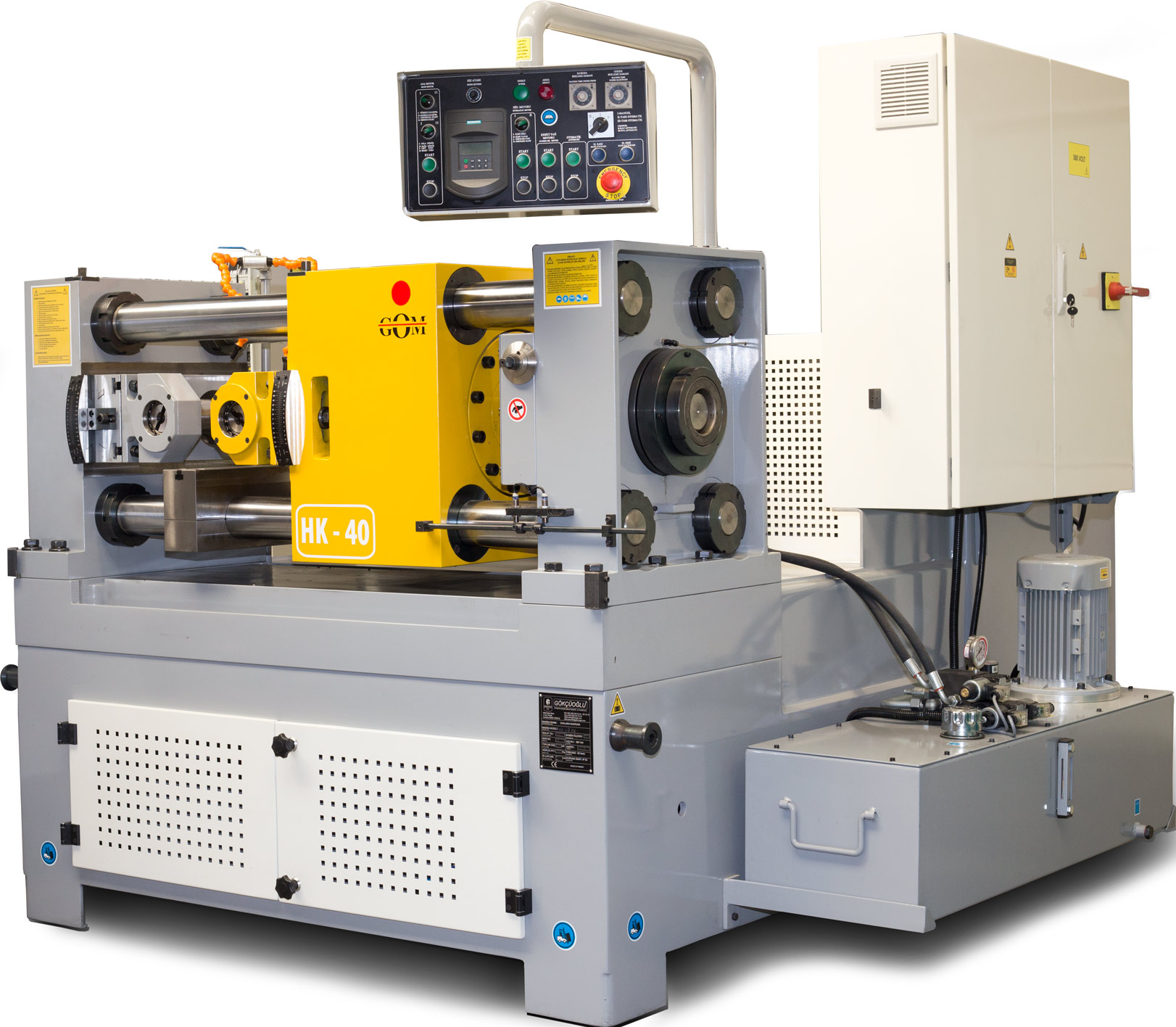

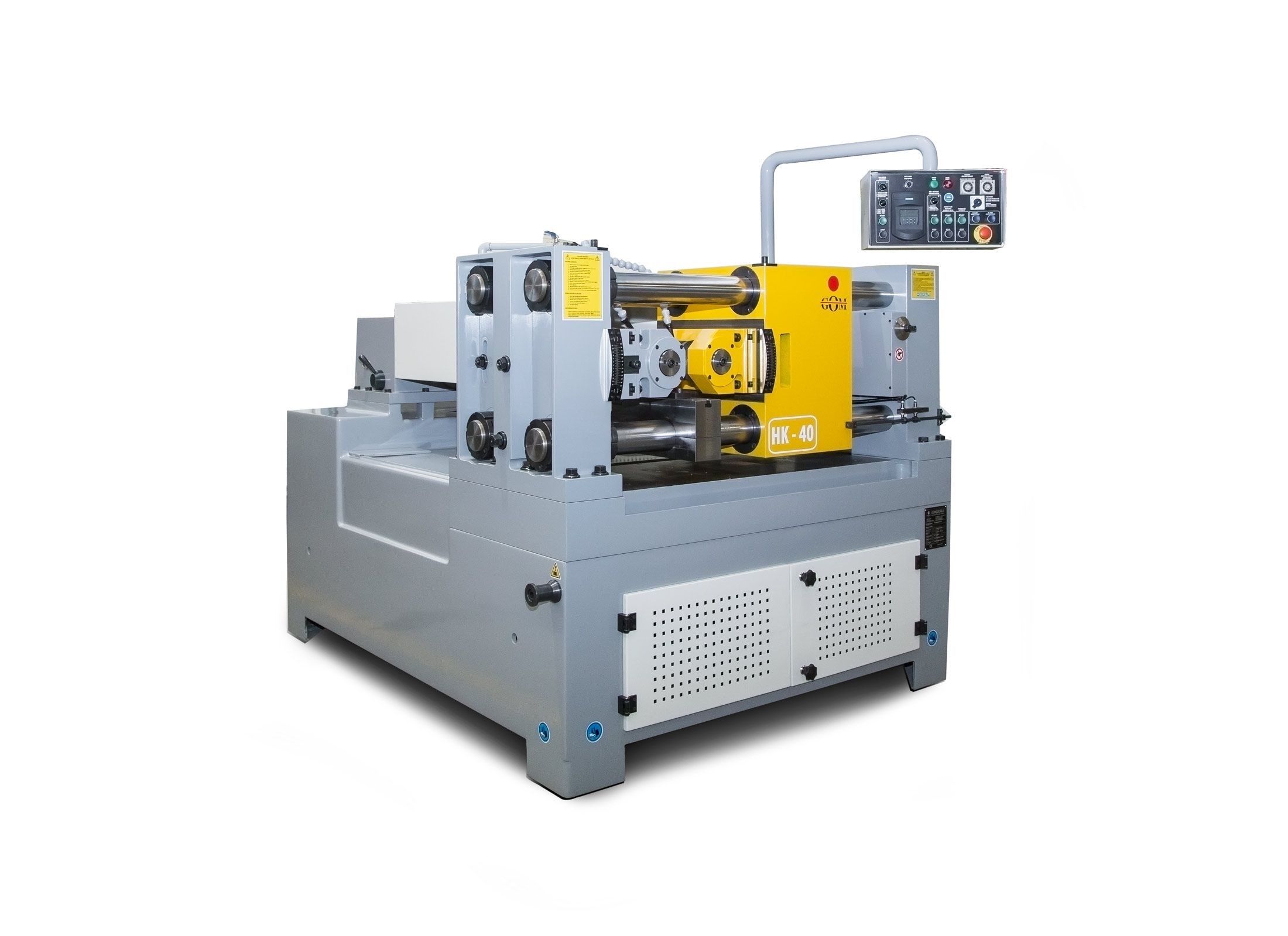

HK-40 HK-40

Product

Images


Click to download the Product catalog
