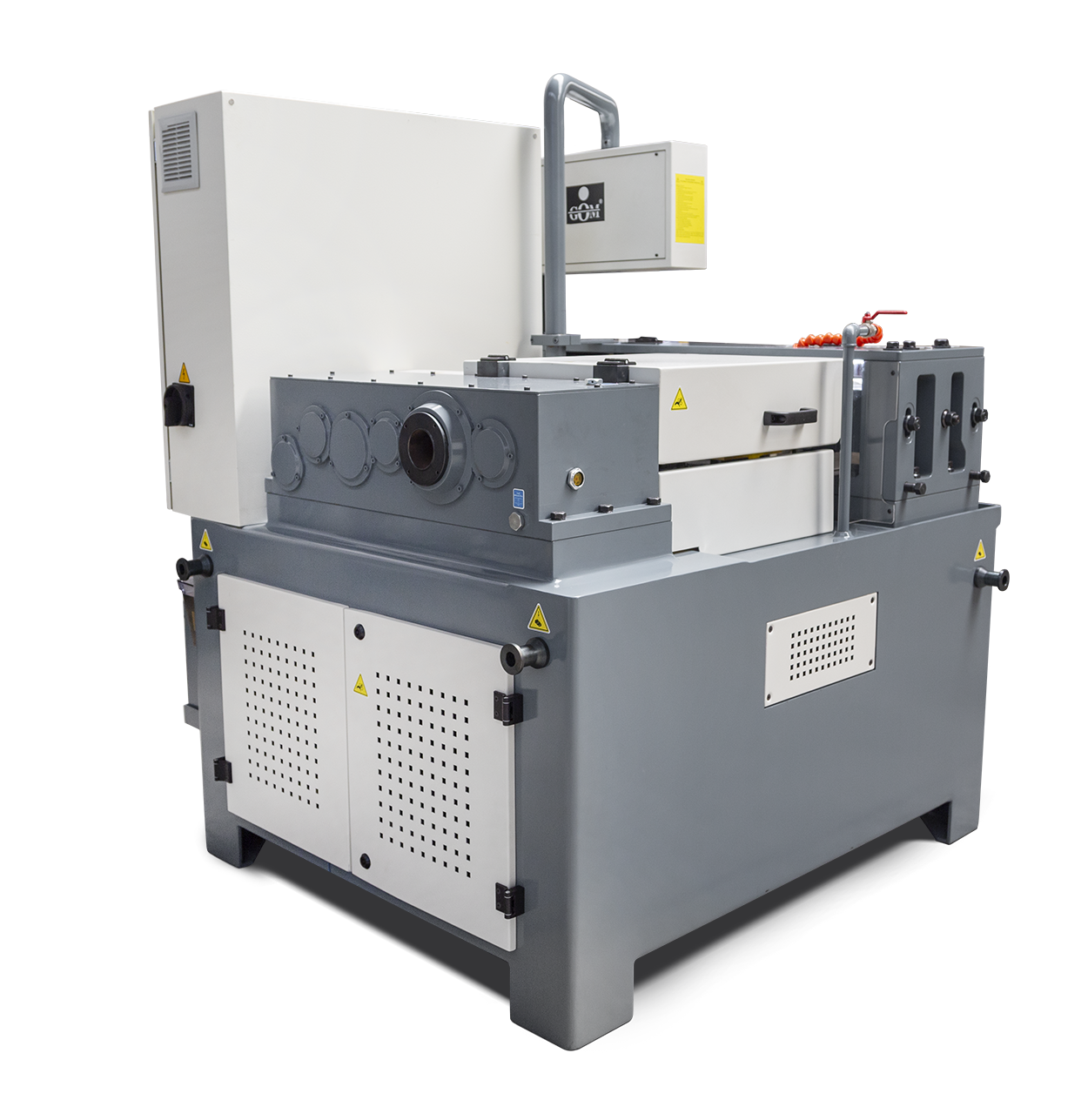

K-25

In our two dies machines, which is able to generate forming up to 15 tons, you can obtain all kinds of screw, knurl and spline forms with cold forming methods up to 2.5 mm  pitch in a shorter time than machining process.

Click for Technical Video
Technicial Specifications

  • Rolling Force

    (kN)10 - 150

  • Speed Range

    (RPM)18 - 62

  • Min. Max. Tool Dia.

    (mm)Ø130 - Ø180

  • Die Spindle Dia.

    (mm)Ø54

  • Max. Die Length

    (mm)125

  • Workpiece Dia.

    (mm)Ø3 - Ø30

  • Max. Pitch

    (mm)2,5

  • Swivel Angle

     ±8°

  • Main Motor

    (KW)7,5

  • Total Power

    (KW)9,5

  • Weight

    (kg)1500
ADDITIONAL OPTIONS:

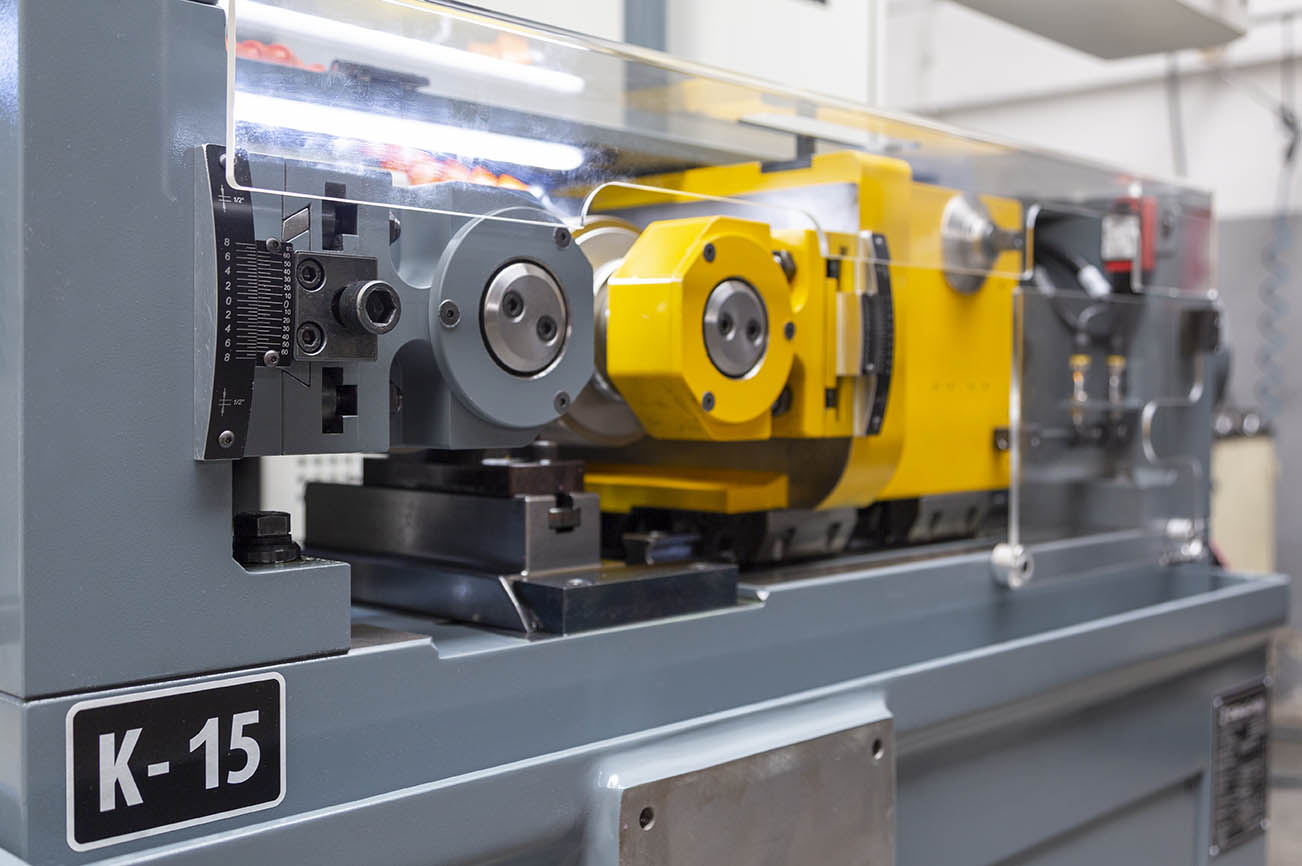

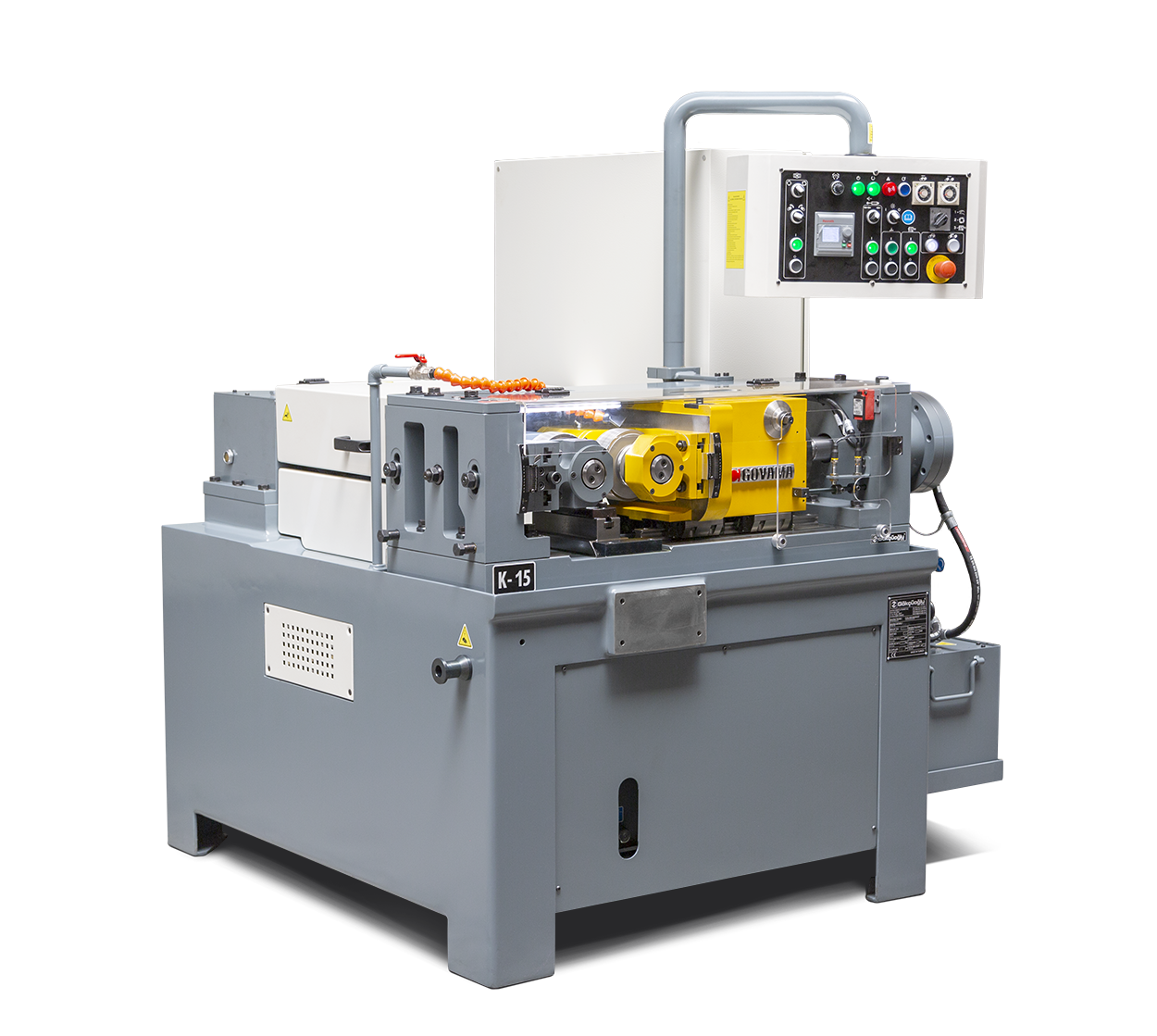

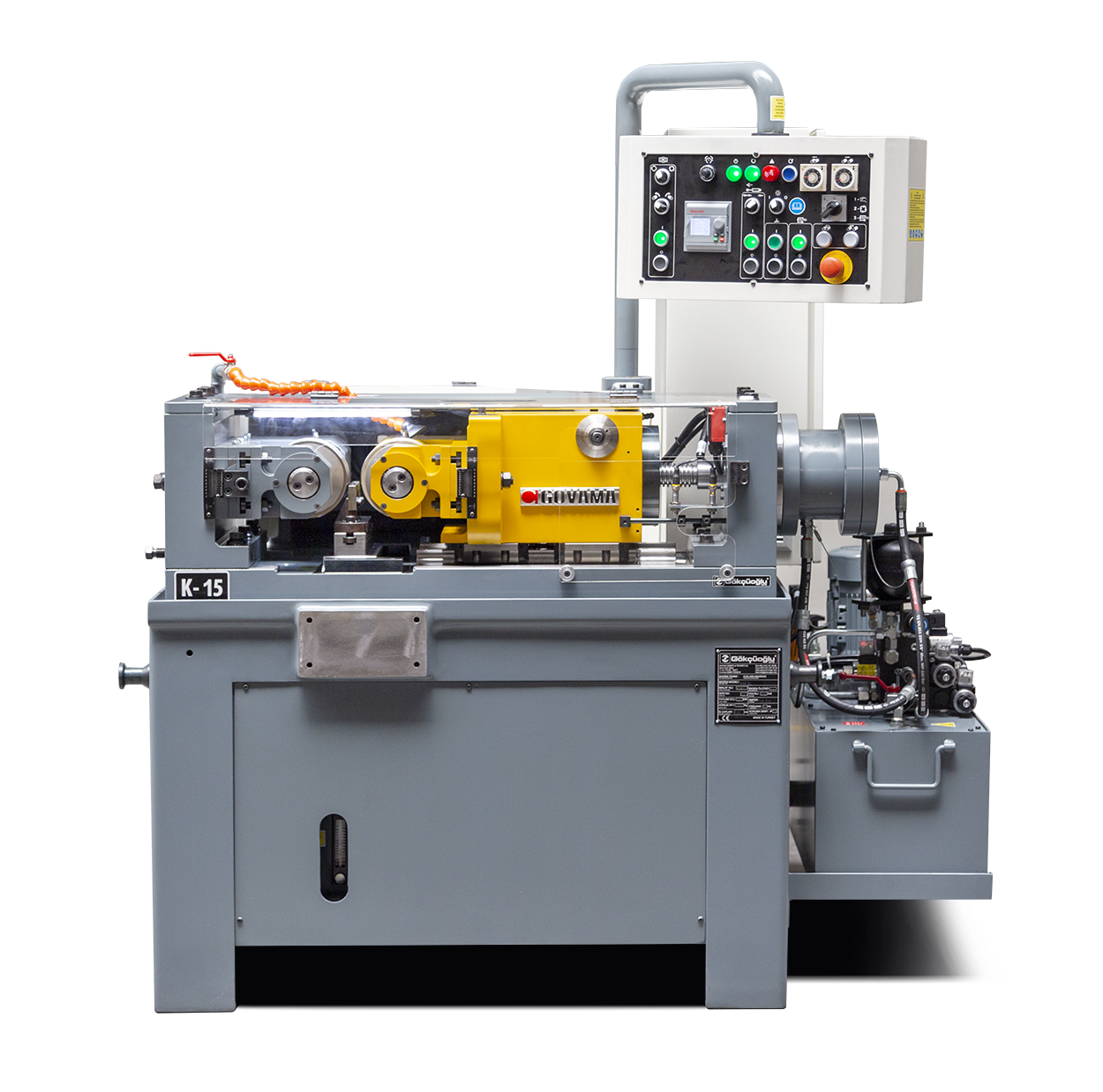

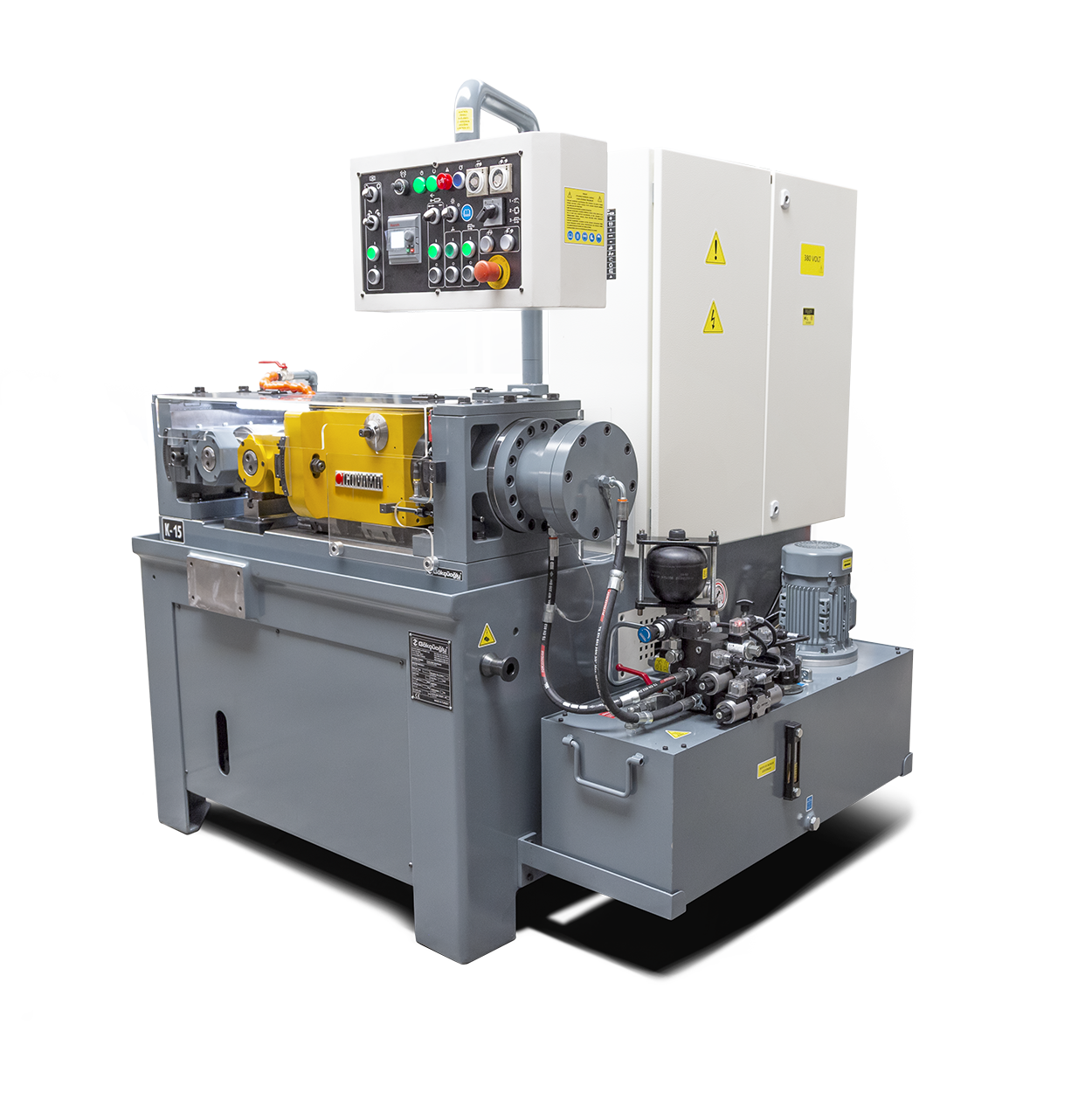

K-15 K-15

Product

Images


Click to download the Product catalog
