ANASAYFA

3R SERIES

3 DIES THREAD ROLLING MACHINE
3R-60
Other
3R-120
Technicial Specifications

  • Rolling Force

    (kN)10-900 kN

  • Speed Range

    (RPM)30 - 50 d/d

  • Min. Max. Tool Dia.

    (mm)Ø 170 – Ø220 mm

  • Die Spindle Dia.

    (mm)Ø 90 – Ø 110

  • Max. Die Length

    (mm)200 mm

  • Workpiece Dia.

    (mm)Ø35 – Ø110 mm

  • Max. Pitch

    (mm)7 mm

  • Swivel Angle

     ±12°°

  • Main Motor

    (KW)75 KW

  • Total Power

    (KW)91,5 kW

  • Weight

    (kg)~ 18600 kg
ADDITIONAL OPTIONS:

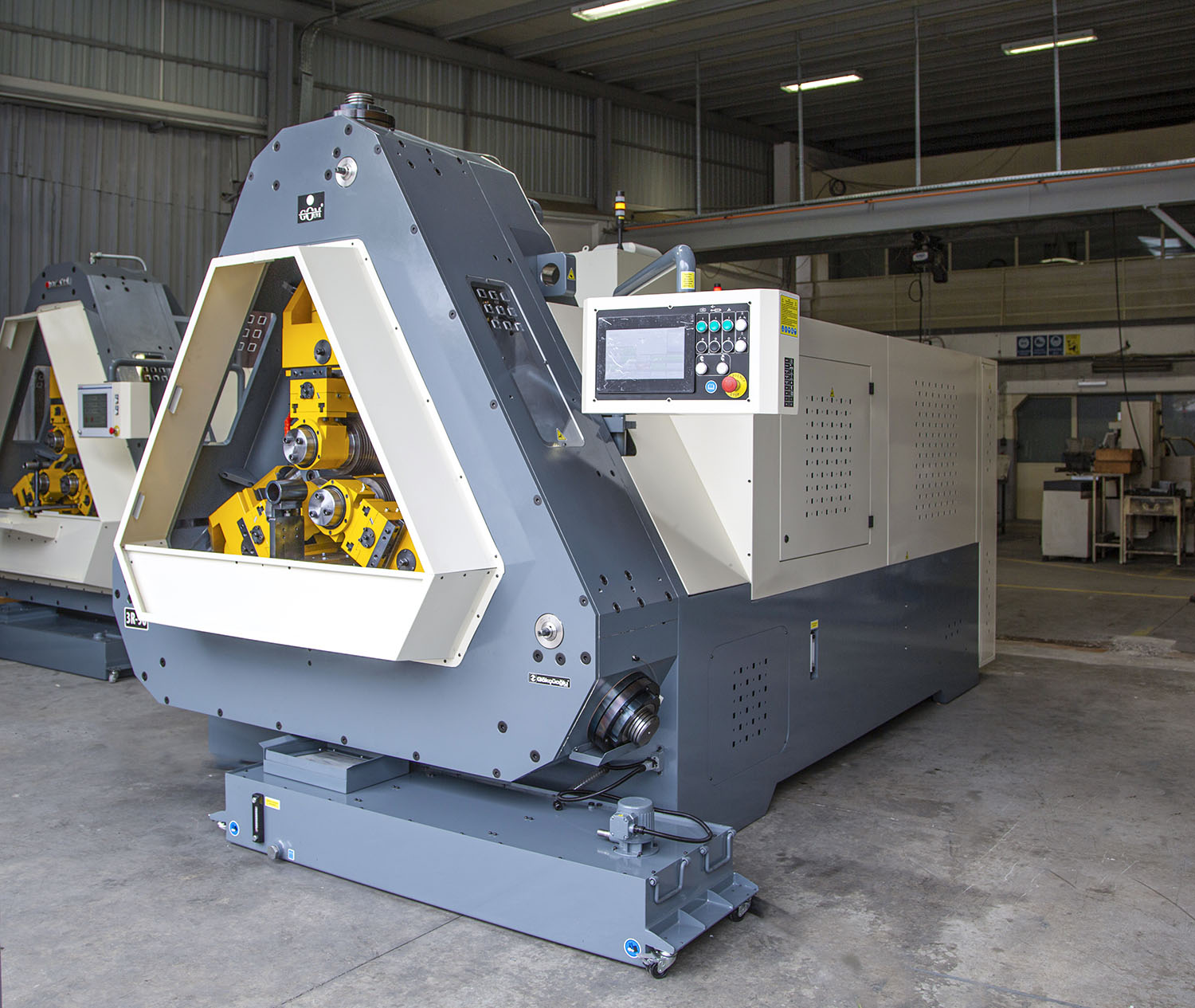

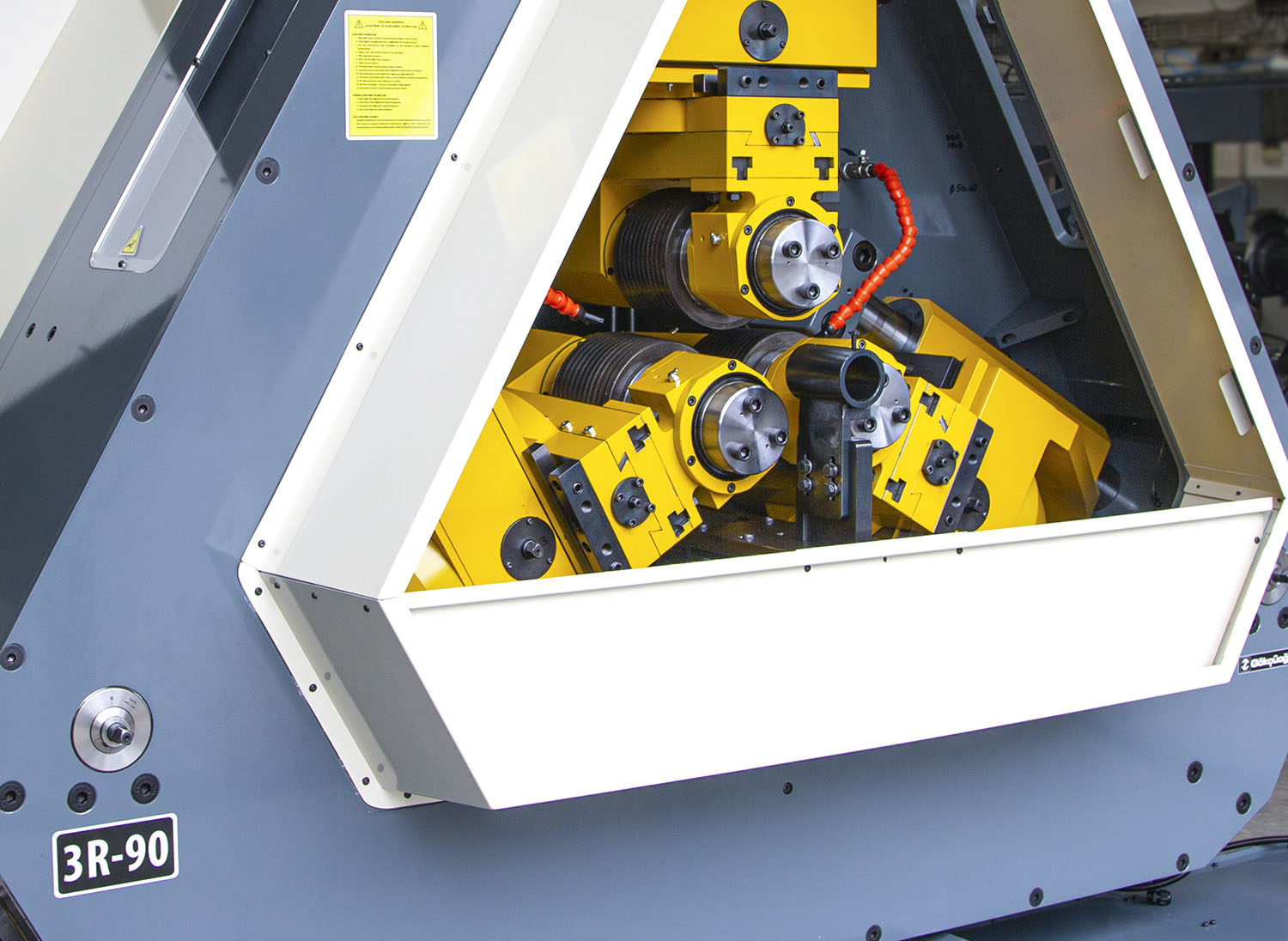

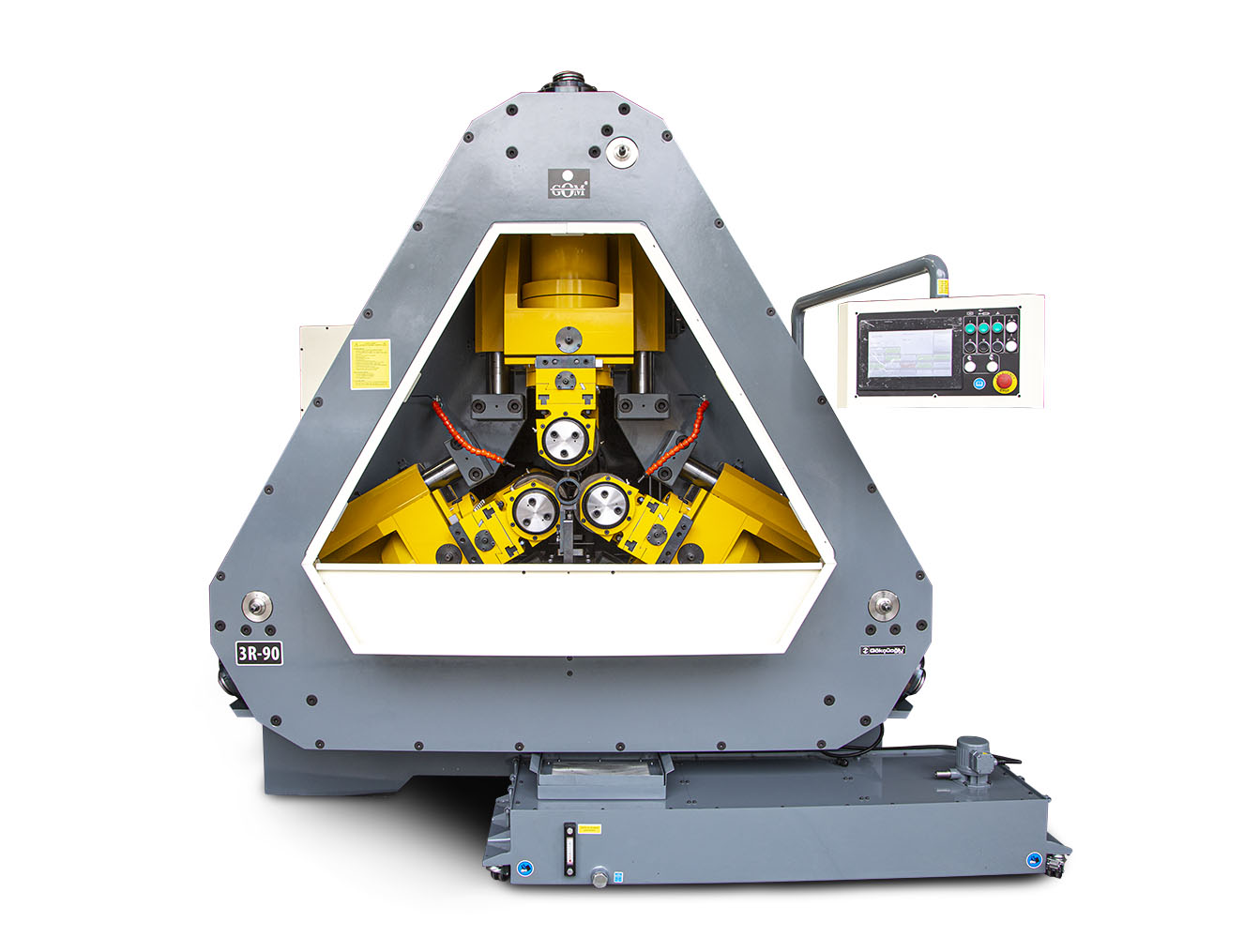

3R-90 3R-90

Product

Images
