3R SERIES

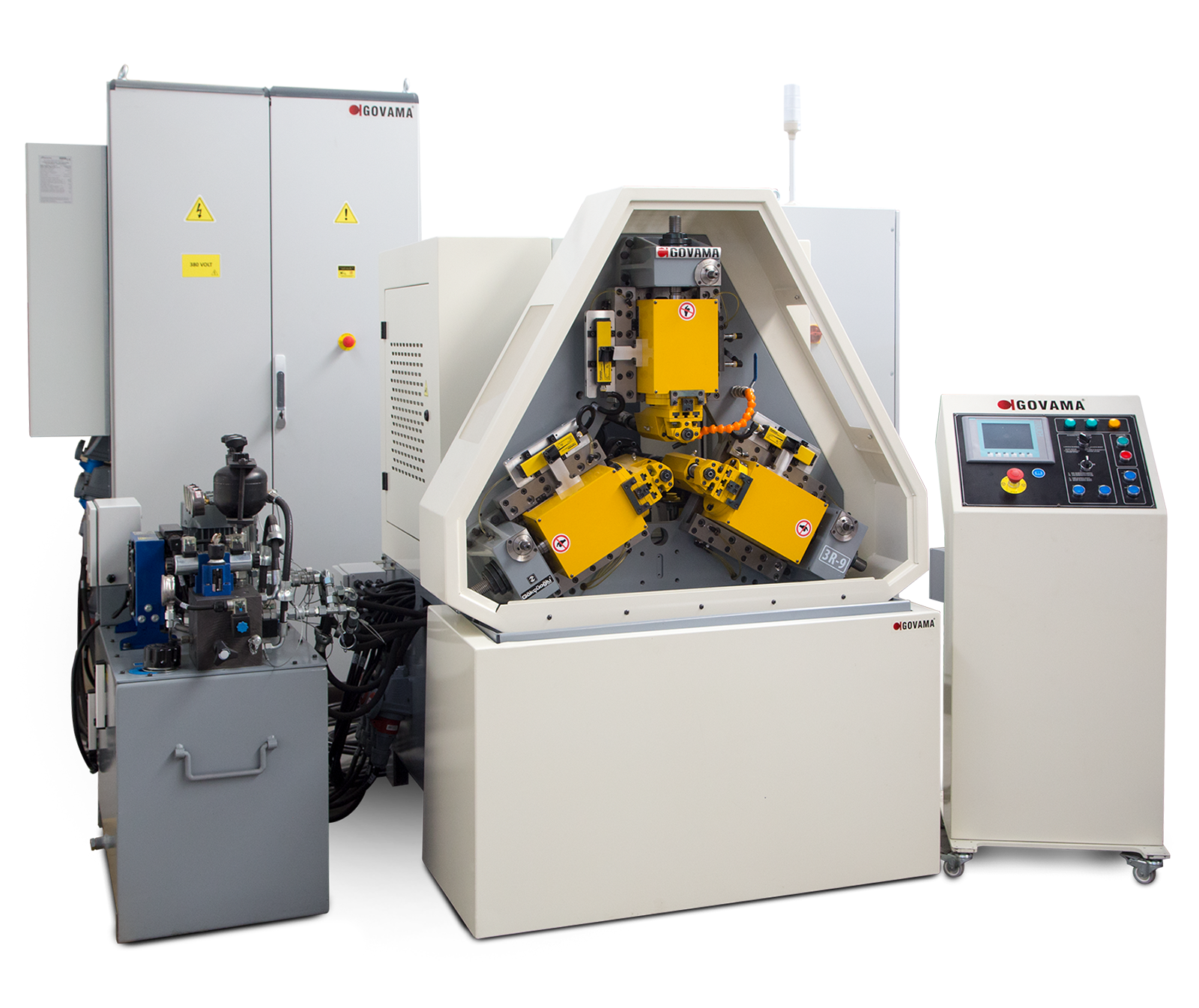

3 DIES THREAD ROLLING MACHINE
3R-3
Other
3R-12

In our three dies machines, which is able to generate forming up to 9 tons, you can obtain all kinds of screw, knurl and spline forms with cold forming methods up to 2 mm pitch in a shorter time than machining process.

Click for Technical Video
Technicial Specifications

  • Rolling Force

    (kN)10 - 90

  • Max Pitch For Pipe

    (mm)1,75

  • Speed Range

    (RPM)45-146

  • Min. Max. Tool Dia.

    (mm)Ø50 – Ø80

  • Die Spindle Dia.

    (mm)Ø25,4

  • Max. Die Length

    (mm)40

  • Workpiece Dia.

    (mm)Ø14 – Ø40 (Ø25 for thru-feed)

  • Swivel Angle

     ±8°

  • Max Pitch For Bars

    (mm)2

  • Main Motor

    (KW)5,5

  • Total Power

    (KW)8,8

  • Weight

    (kg)2150
ADDITIONAL OPTIONS:
3R-9 3R-9

Product

Images


Click to download the Product catalog
