2R SERIES

2 DIES THREAD ROLLING MACHINE WITH GUIDE
K-15
Other
K-40

In our two two dies machines , which is able to generate forming up to 25 tons , you can obtain all kinds of screw, knurlr and spline forms with cold forming methods up to 4 mm pitch in a shorter time than machining process.

Click for Technical Video
Technicial Specifications

  • Rolling Force

    (kN)10 - 250

  • Speed Range

    (RPM)18-60

  • Min. Max. Tool Dia.

    (mm)Ø145 - Ø190

  • Die Spindle Dia.

    (mm)Ø69.85 (Ø80 optional)

  • Max. Die Length

    (mm)170

  • Workpiece Dia.

    (mm)Ø3 - Ø40

  • Max. Pitch

    (mm)4

  • Swivel Angle

     ±8°

  • Main Motor

    (KW)11

  • Total Power

    (KW)13,7

  • Weight

    (kg)2600
ADDITIONAL OPTIONS:

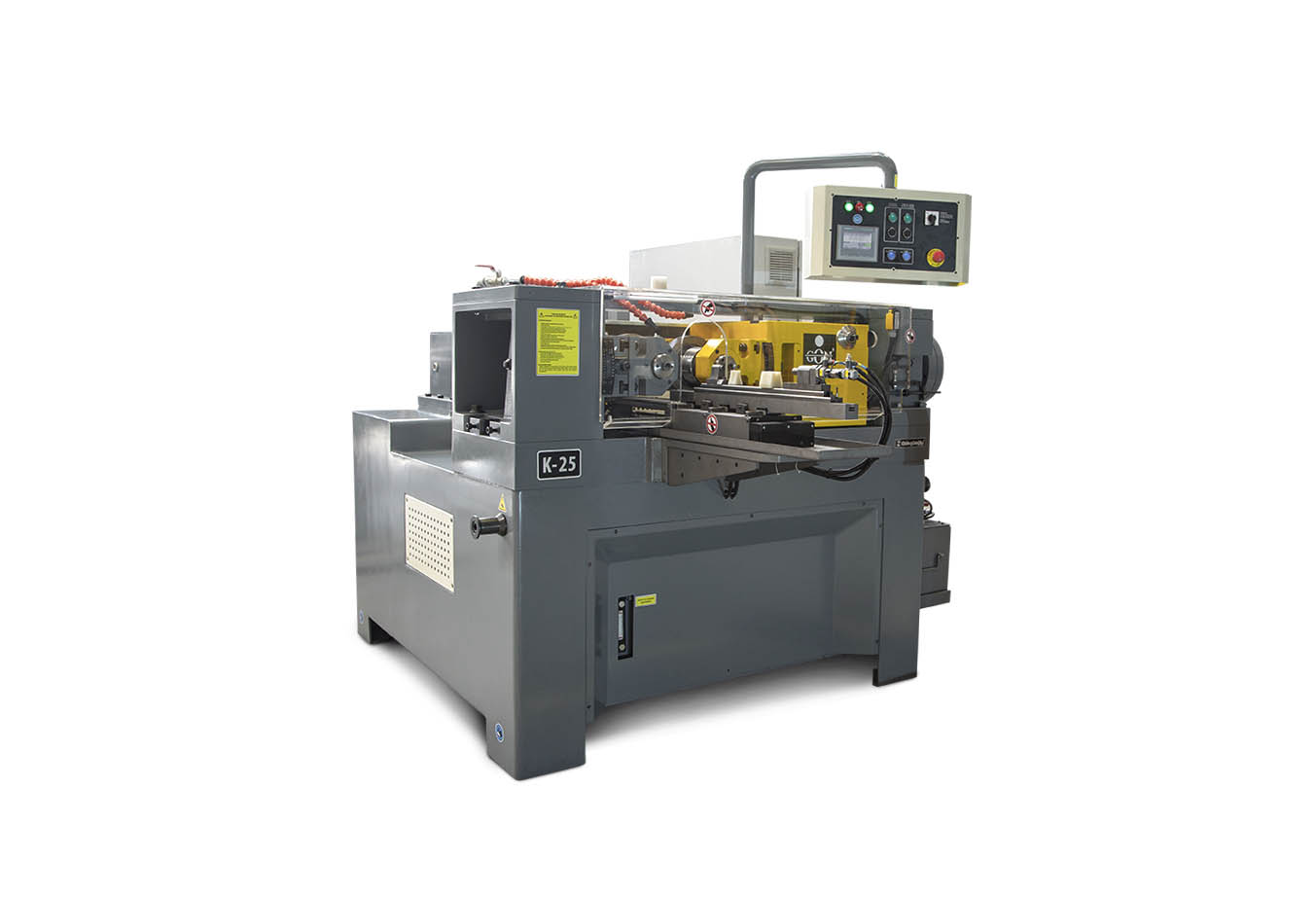

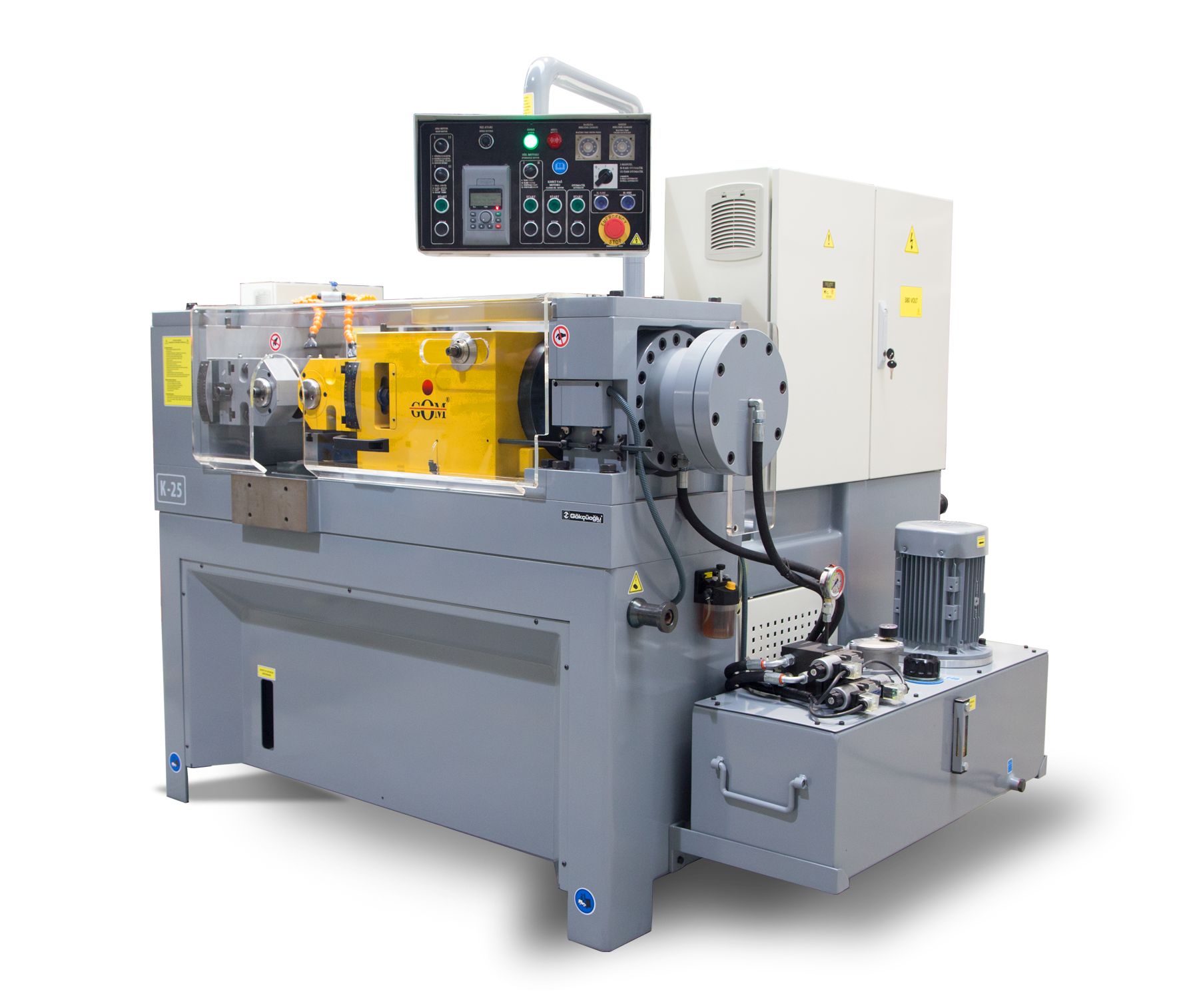

K-25 K-25

Product

Images


Click to download the Product catalog
