3R SERIES

3 DIES THREAD ROLLING MACHINE
3R-90
Other
2HK-25

In our three which is able to generate  up to 120 tons, you can obtain all kinds of screw, knurl and spline forms with cold forming methods up to  14 mm pitch in a shorter time than machining process.

Click for Technical Video
Technicial Specifications

  • Rolling Force

    (kN)10-1200

  • Speed Range

    (RPM)61-114

  • Min. Max. Tool Dia.

    (mm)Ø80 - Ø90 - Ø110

  • Die Spindle Dia.

    (mm)Ø80

  • Max. Die Length

    (mm)140

  • Workpiece Dia.

    (mm)Ø28 – Ø120 (Ø85)

  • Swivel Angle

     ±12°

  • Max Pitch For Bars

    (mm)12

  • Main Motor

    (KW)75

  • Total Power

    (KW)100

  • Weight

    (kg)17700
ADDITIONAL OPTIONS:

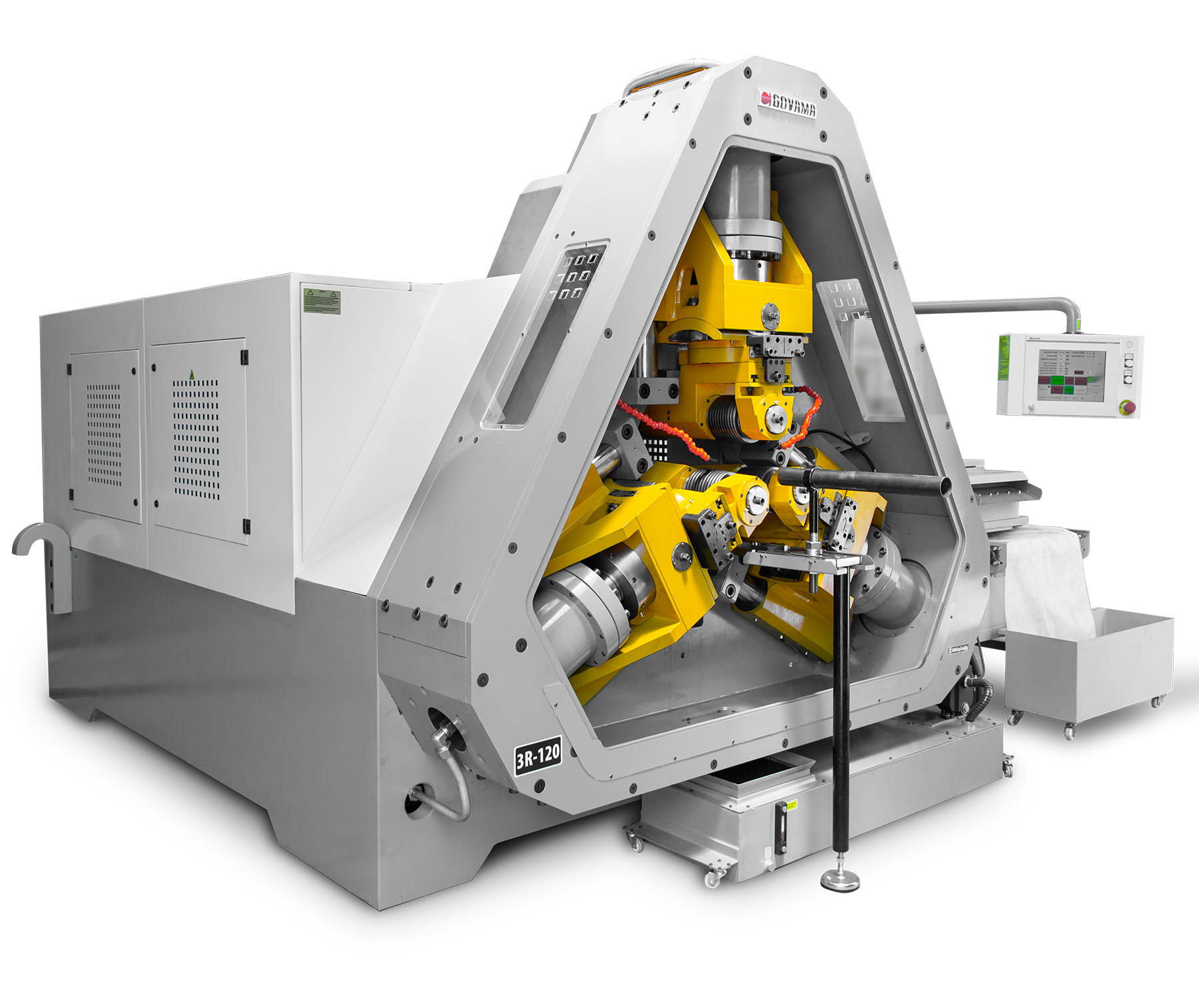

3R-120 3R-120
