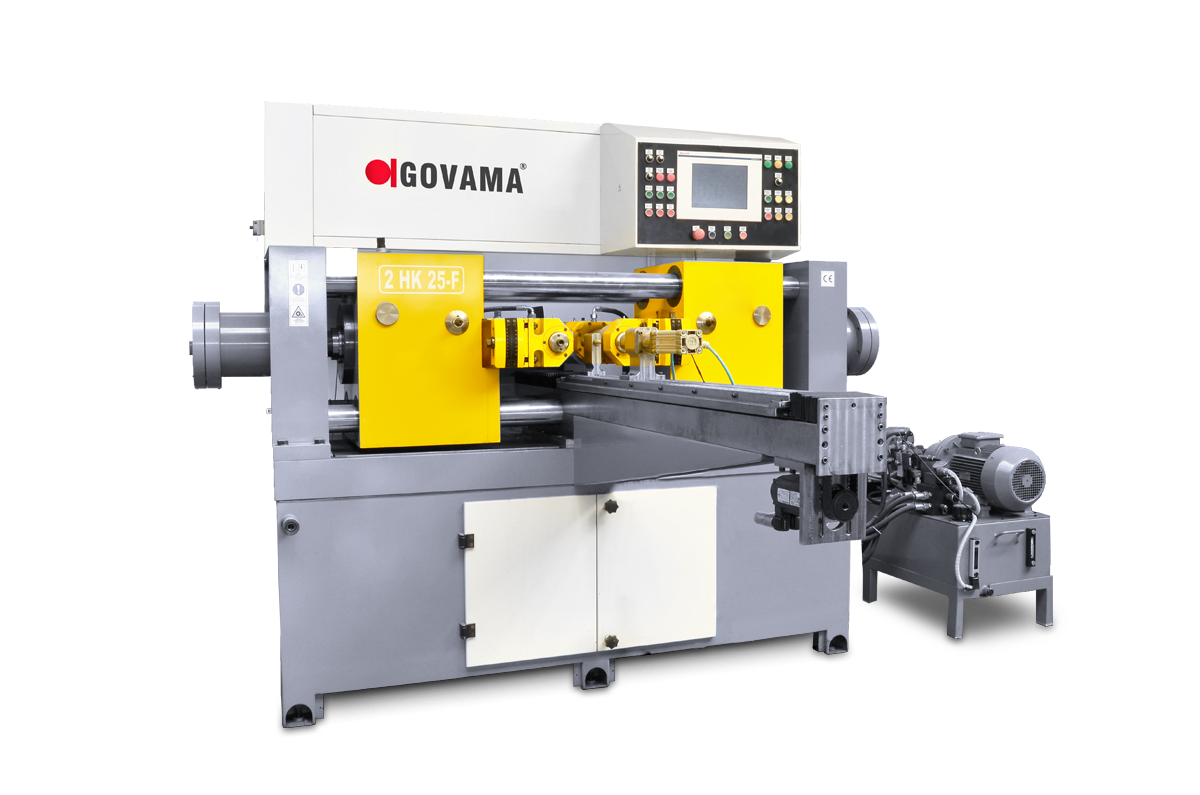

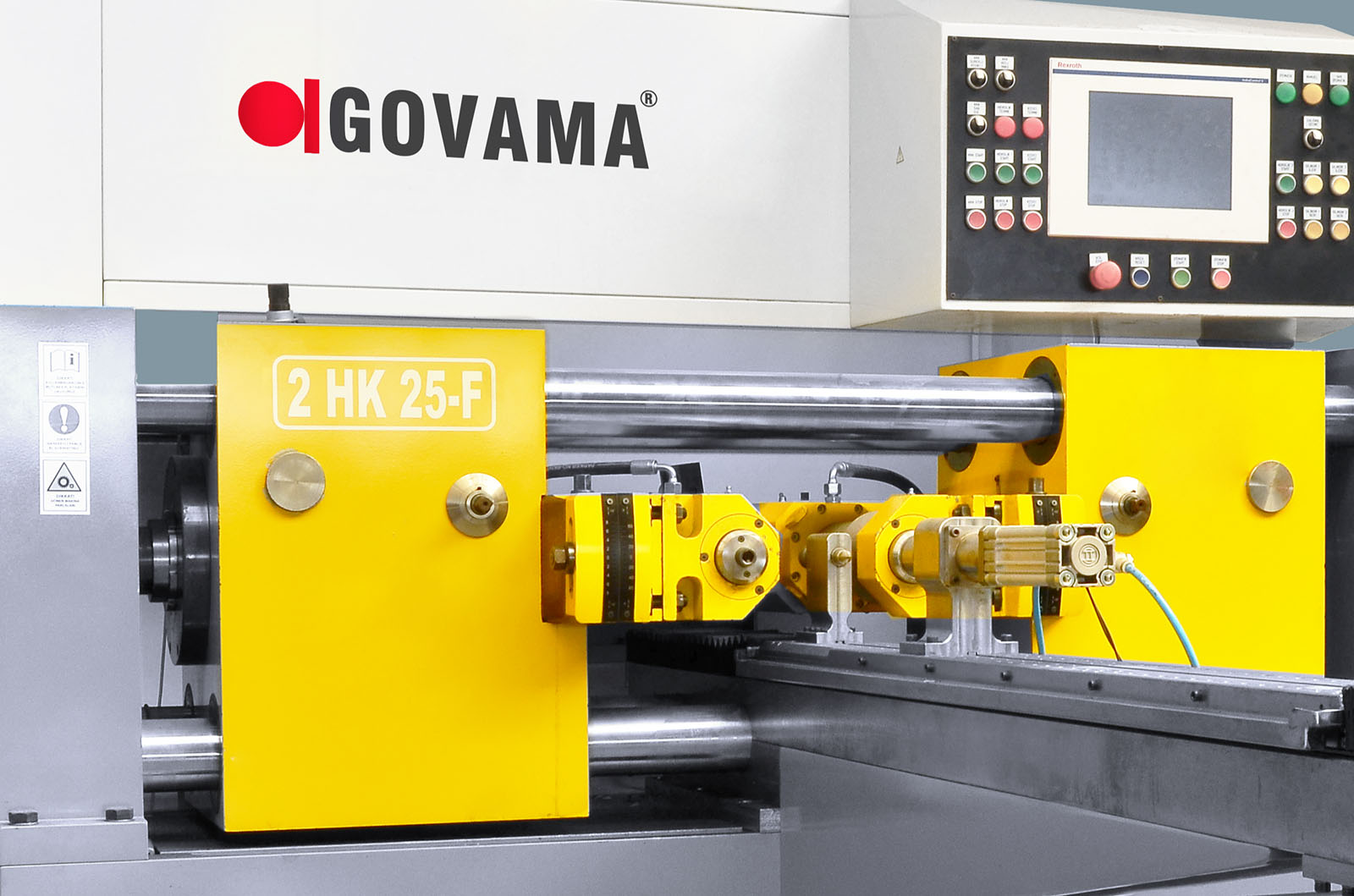

In our two dies machines with two moveable bodies, which is able to generate forming up to 25 tons of each body, you can obtain all kinds of screw, knurl and spline forms with cold forming methods up to 3.5 mm pitch and Ø50 mm in a shorter time than machining process.

Technicial Specifications
  • Rolling Force

    (kN)2х25
  • Min. Max. Tool Dia.

    (mm)175 - 210
  • Die Spindle Dia.

    (mm)69,85
  • Max. Die Length

    (mm)250
  • Workpiece Dia.

    (mm)4 - 80
  • Max. Pitch

    (mm)4
  • Swivel Angle

     ±8°
  • Main Motor

    (KW)11
  • Total Power

    (KW)16
  • Weight

    (kg)5250
